Eooe Hydraulic Cold Drawnbench With The Drawing Force 10t 2000t - China

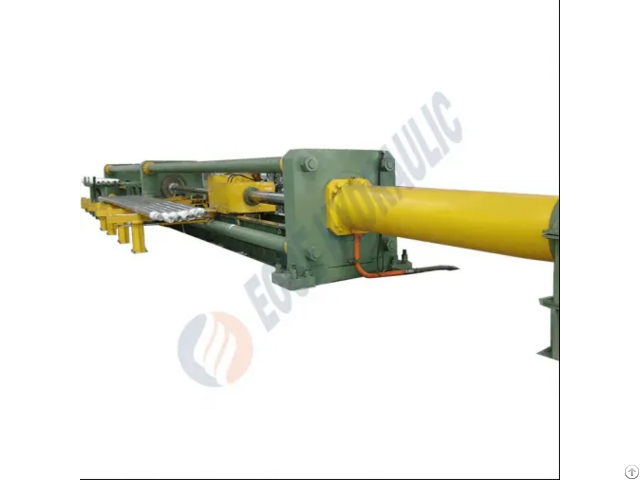

EOOE Hydraulic Cold Drawnbench with the Drawing Force 10T-2000T

A Tube Drawing Machine is a type of industrial machinery used in the metalworking industry for the process of tube drawing.

Tube drawing is the process of reducing the diameter of a tube by pulling it through a die, which causes the tube to elongate and become thinner.

The Tube Drawing Machine consists of a series of rollers or mandrels arranged in a line, through which the tube is passed.

The rollers or mandrels apply pressure to the tube, causing it to elongate and reduce in diameter as it passes through each set of rollers.

Tube Drawing Machines can be designed for a variety of materials, including steel, aluminum, brass, and copper.

The machine can be configured with different sets of rollers and mandrels to accommodate tubes of varying sizes and shapes.

The tube drawing machine is controlled by a computer or programmable logic controller (PLC) so that process parameters such as speed, pressure and temperature can be precisely controlled.

The machine also has sensors and instrumentation to monitor the process and ensure its smooth operation.

The Tube Drawing Machine is widely used in the manufacturing of various products, including automotive parts, medical devices, and plumbing fixtures.

It is a critical component in the production of seamless tubing, which is used in many industries due to its superior strength and durability.

The Tube Drawing Machine is an essential piece of machinery in the metalworking industry that is used to produce seamless tubing.

It is a complex and precise machine that requires skilled operators and advanced control systems to operate effectively.

Main Parameters

Model Max.

Drawing Force Max.

OD(mm) Stroke(mm)

YLB50 500 89 10000

YLB100 1000 127 10000

YLB150 1500 168 10000

YLB200 2000 219 10000

YLB300 3000 351 12000

YLB500 5000 426 12000

YLB630 6300 529 12000

YLB1000 10000 630 12000

YLB1500 15000 710 12000

YLB2000 20000 900 12000

All models can be customized according to customers requirements.

EOOE Tube Drawing Machine

In the early 1990, EOOE produced the first hydraulic cold drawbench.

Compared with the traditional chain drawbench, it has obvious advantages such as large drawing force, high working efficiency, low noise and stable operation.

Until now, hydraulic cold drawbenchs produced by our company have been spread over many provinces in China, with a number of more than 100 sets.

High quality products and services make us have a good reputation among our customers.

Standard

Cooperating with Changzhou Hehai University, we drafted the industrial standard for hydraulic cold drawing machines JB/T11060-2010 YLB Series Hydraulic Cold Drawing Machines, which standardized the classification and naming, technical requirements, test methods, inspection rules, packaging and transportation of hydraulic cold drawing machines; There are four standards: JB/T 11589-2013 Steel Pipe Cold Drawing Die, JB/T 11588-2013 Large Hydraulic Cylinder, and Complete Set of Metal Pipe Hydraulic Cold Drawing Device.
