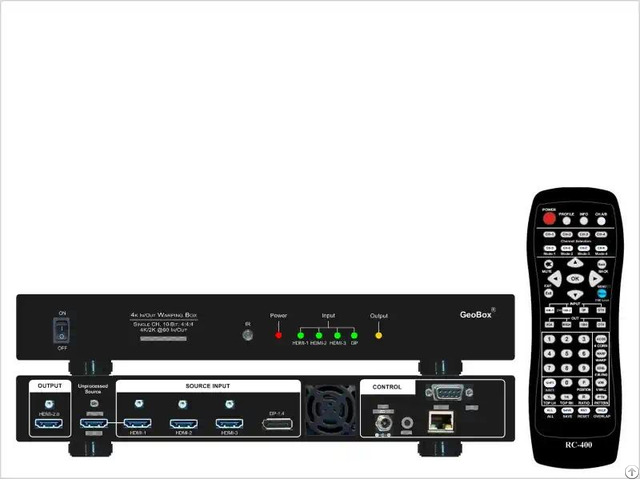

4k Edge Blending Hardware Warping Box - Taiwan

Model: UD101

UD101L is a compact 4K warping processor and professional edge blending hardware for projection mapping, curved screens, and multi-projector setups, combining warp/de-warp, video wall control, format conversion, scaler switching, PIP/POP, image cropping, flip/rotation, and quad split multi-view, with precise geometry alignment up to 120 × 68 control points and easy control via IR, USB, Ethernet, or WebGUI.

Specifications

1 - Input: 3x HDMI 2.0b, 1x DP1.4, Output: 1x HDMI 2.0, input seamless switcher function can be selected.

2 - Loop output: 1x HDMI 2.0b for audio and daisy chain connection.

3 - HDCP compliance: Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3, Output: HDCP V2.0/V1.4.

4 - input resolution: DisplayPort: 7680*4320 @30Hz, HDMI: 7680*2160 @30Hz, 7680*1200 @60Hz, 4096*2400 @50Hz, 4096*2160 @60Hz.

5 - Input supports progressive and interlaced RGB/YUV signal, 4: 4: 4 Chroma sampling, up to 30 Color bits.

6 - Support non-VESA standard input timings for easy connection with various signal sources.

7 - 16 selectable Outputs: HDMI 2.0 up to 4096*2160 @60Hz, progressive 4: 4: 4 RGB.

8 - 2 frames system latency: 33ms (@V=60Hz)

9 - Warp engine for geometry alignment up to 120x68 control points.

10 - Maximum geometry adjustment up to 1200 pixels in both H&V directions for each corner.

11 - Support W shape Corner Wall adjustment in H&V at flexible location.

12 - Support Linearity Grid Line adjustment for quick H&V line position alignment.

It is good for the line gap adjustment on curved screen display.

13 - Edge Mask with 8 control points up to 900 pixels at each control point in H&V directions.

14 - Embedded video wall function for image split, cropping and aspect ratio adjustment.
