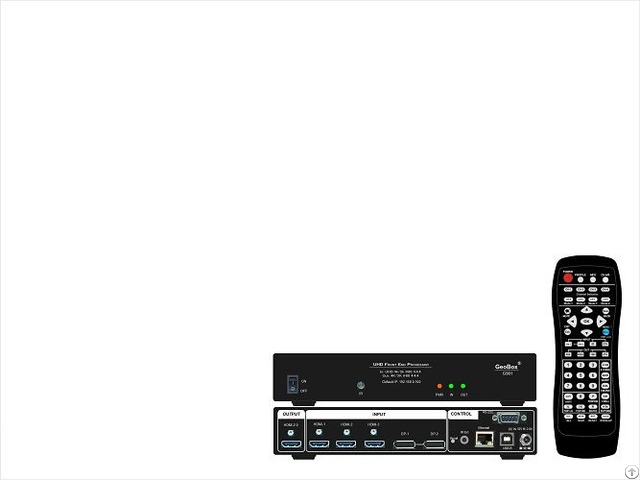

3d Format Converter - Taiwan

Model: G901

G901 is a 3D processor for format conversion and decoding, supporting passive and active 3D displays.

It handles medical formats like line-by-line, interleaved, and dual camera, converting them to side-by-side, top/bottom, or frame sequential output.

Built-in features include seamless switching, scaling, flip/rotation/cropping, video wall, PIP/POP, multi-viewer, and 3D processing.

Inputs support PC, Blu-ray, game consoles, and medical endoscopes.

Specifications

1 - Input ports: 3x HDMI 2.0b, 2x DP1.4

2 - input: 4096*2160 @60fps or 7680*2160 @30fps in HDMI and 7680*4320 @30Hz (true 8k/4k @30Hz) in DisplayPort input.

3 - Supports interleaved and progressive input signals with 4: 4: 4 10-bit color

4 - Programmable Output: 1x HDMI 2.0b up to 4096*2267@60fps or 7680*1234 @60fps

5 - The output range is from 800-7680 in horizontal (8 pixel/step under 230Mhz, 16 pixel/step above 230Mhz) and 600-3840 in vertical (1 pixel/step) (maximum resolution is 600MHz).

6 - Output signal: SDR, progressive full color RGB 4: 4: 4 10-bits.

7 - Preset 17 output timing modes with 8-bit/10-bit color and 24/30/50/60/100/120Hz refresh rate selection.

8 - HDCP: V2.2/V1.4 in HDMI & V2.2 in DP ports.

9 - One frame latency: 16.7ms (V=60Hz)

10 - PIP/POP function with PIP image size from 320*180 up to 1920*1200 resolution with flexible position, rotation/flip and selectable aspect ratio.

11 - POP image can be at side by side or Top/Bottom.

Main and sub-image can be rotated / flipped with flexible aspect ratio adjustment.

12 - 5x1 seamless switching with continuous output signal.

Projector needn’t re-search input source.

13 - One G901 can display 4 types of 3 split views on landscape or portrait UHD monitor.

2 types of 4 split views can be displayed in landscape monitor.

All inputs can be up to 4k/2k 60Hz.

14 - 3x SBS split view with the center image size from 1/6 to 5/6 adjustable.

15 - Individual color adjustment in main and sub-images.

16 - 10-bit processor, 3: 2/2: 2 cadence, low angle smooth algorithm

17 - High quality scaling engine for image scaling up and down in the range from XGA to UHD.

18 - 3D motion adaptive de-interlace for interleaved input.

19 - Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment up to 4k/60 input.

20 - Decode 3D signal for passive 3D display.
