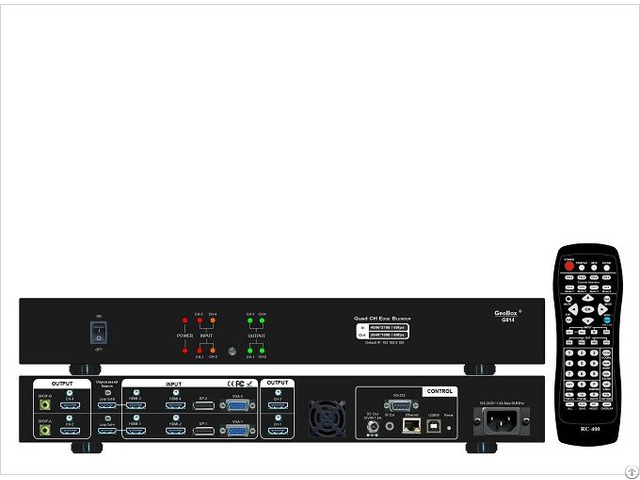

Quad Channel Edge Blending Processor - Taiwan

Model: G810

The G810 has two models: G812 for two projectors and G814 for 4 projectors.

It is a professional curved screen edge blending processor, designed for sophisticated edge blending, image warping, and stacking.

G810 can be cascaded with other edge blenders to create large-scale edge blending systems.

Specifications

1 - Models: G812 (single processing), G814 (dual processing)

2 - HDCP: HDMI 2.2/1.4; DP 1.3

3 - Audio: Embedded HDMI & SPDIF outputs

4 - ESD: ±8kV air, ±4kV contact

5 - Power: AC 100–240V or DC 12V; DC 12V 1A output when using AC

6 - Power consumption (typ.

): 21.4W/20.5W (AC‑only); 33.4W/32.5W (with DC 12V/1A out)

7 - Environment: up to 45°C, 10–90% RH

8 - Dimensions: 440 × 161 × 58 mm; Weight: 2.46 kg

9 - Certifications: CE, FCC, RoHS; Warranty: 2 years (extendable to 5)

10 - Inputs: 8 total (4× HDMI 2.0b, 2× DP 1.2a, 2× VGA); Outputs: 4× HDMI

11 - Input resolution: up to 4096×2160 @60Hz; 7680×1200 @30Hz; 4: 4: 4 full chroma

12 - Output resolution: up to WUXGA and 2048×1080 @60Hz; RGB 4: 4: 4 progressive

13 - HDR input supported (no HDR effect on output)

14 - Two‑frame latency (~33ms @60Hz), 10‑bit processing

15 - Control: IR, RS‑232, Web GUI, USB/Ethernet PC tool; programmable EDID

16 - HDMI 2.0 loop‑out for daisy chain; frame lock for synchronized outputs

17 - Performance & Processing

18 - 10‑bit processor, 4: 4: 4 chroma, xvYCC; 8/10/12‑bit input support

19 - High‑quality scaling engine; low‑angle smooth algorithm

20 - 3D motion adaptive de‑interlace; 3: 2/2: 2 cadence

21 - Selectable grid pattern size (8–120 px) and color; optional transparency

22 - Flexible aspect ratio per edge, ±1800‑pixel cropping range

23 - Refresh rates: 24/30/50/60/120 on select output timings
