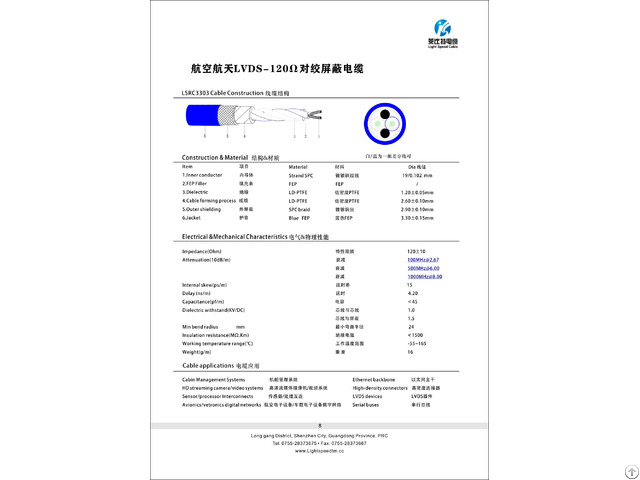

Lsrc3303 Aerospace Lvds 120Ω Star Quad Shielded High Speed Data Cable - China

LSRC3303 Aerospace LVDS-120Ω Star-Quad Shielded High-Speed Data Cable

Cable applications: Cabin management systems, Ethernet backbone, high-definition streaming cameras/video systems, high-density connectors, sensor/processing interconnects, LVDS devices, avionics/in-vehicle electronics digital networks, serial buses

Category: LVDS high-speed data cable for aviation

Electrical & Physical Properties

Impedance 120±10(Ohm)

Delay Difference 15(ps/m)

Delay 4.20(ns/m)

Capacitance �?�45(pf/m)

Conductor to Conductor 1.0(KV/DC)

Conductor to Shield 1.5(KV/DC)

Minimum Bending Radius 33 mm

Insulation Resistance 1500(MΩ.

Km)

Operating Temperature Range -55~165(ºC)

Weight 18 (g/m) Light speed cable technology Co.

Ltd

Military grade cable supplier

Aerospace wire maufacturer

Custom MIL-Spec and commercial cable assembly

Lighttspeed cable technology, Co.

Ltd. Professional designs and manufactures high performance cables for RF and high data rate calbe transmission applications.

Our products include: Aerospace high speed data cable, low loss, phase stable coaxial calbe, Aerospace high speed data cable assemblies/RF coaxial assemblies

With 14 years R&D and produce Military Grade high speed data cable and cable assemly experience.

our products have been widely used in the field of testing system, telemetry, remote sensing, aerospace field.

flight control, data bus, defense, flighter, microwave weapon system.

round weapon system.

radar, warship, satellite, communications/satcom, military and commercial application, groundsatellite station, antenna and feeder, signal interconnection, flight enterfainment.

medical application.

Light speed cable products ofer advantages such as low attenuatin.

low VSWR, and high speed.

The Complany's strong R&D team and production department process superior domestic technology, ensuring reliable performance for customers and providing complete solution.

Light speed cable is quality and service oriented manufactured .

quality certified according to GJB 9001 C-2017 and GB/T 19001-2016 /ISO 9001: 2015

You can choose our standardized product in our website or customized as your requirements.

Company Contact:

• Posted By: ShenZhen Light Speed Cable Technology Co.ltd

• Phone: 13049314331

• Address: 4nd floor, Building L, JingTie Ind. District, No.49th, Changjiangpu,Road, Yuansan,Longgang, shenzhen, , Guang Dong, China

• Email:

• Website: http://www.lightspeedtm.cc

• Business Description: Light speed cable technology, Co,Ltd, professional designs and manufactures high performance cables for RF and High data rate cable transmission applications.

  Our products include : Aerospace high speed data cables ( Mil-1394b high speed bus series, Mil-1553b high speed bus series.

  Aviation high speed ethernet series, Aviation high speed LD-PTFE wrapped cable, LVDS high speed data cable for aviation) Low loww, phase stable coaxial cable( phasestablecoaxialcable, low loss coaxial cable, RG coaxial cable), Aerospace high speed data cable assemblies /RF coaxial assemblies(Mil-1394b assemblies, RG coaxial cable assembly, Multi-channel bundled assemblies, Precision test armor assemblies, Phase stable coaxial cable assembly, aviation ethernet assemblies)

  We have 14 years R&D and produce Military Grade High Speed data cable and cable assembly experience.

  Our products have been widely used in the field of testing sytem, telemetry, remote sensing, aerospace field, flight control , data bus , defense, fighter, microwave weapon systems, ,ground weapon system, radar, warship, satellite communications/satcom, military and commercial application, ground satellite station, antenna and feeder,signal interconnection, flight enterfainment.

  medical application ).

  Light Speed Cable products offer advantages such as low attenuation,low VSWR,and High speed .

  The company's strong R&D team and production department possess superior domestic technology, ensuring reliable performance for customers and providing complete solution.

  Light Speed Cable is quality and service oriented manufactured ,quality certified according to GJB 9001C-2017 and GB/T 19001-2016/IS0 9001: 2015.

  You can choose our standardized product in our website (www.

  lightspeedtm.

  cc) or customized as your requirement.
