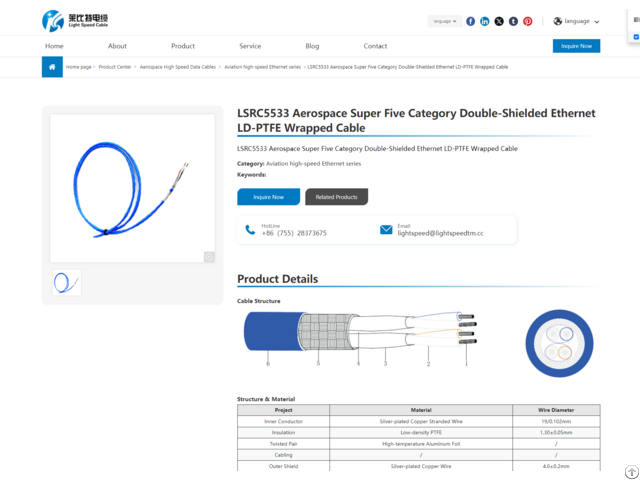

Lsrc5533 Aerospace Super Five Category Double Shielded Ethernet Ld Ptfe Wrapped Cable - China

LSRC5533 Aerospace Super Five Category Double-Shielded Ethernet LD-PTFE Wrapped Cable Category: Aviation high-speed Ethernet series Structure & Material Project Material Wire Diameter Inner Conductor Silver-plated Copper Stranded Wire 19/0.102mm Insulation Low-density PTFE 1.30±0.05mm Twisted Pair High-temperature Aluminum Foil / Cabling / / Outer Shield Silver-plated Copper Wire 4.0±0.2mm Jacket Blue FEP 4.50±0.20mm Electrical & Physical Properties Impedance 100±15(Ohm)

Capacitance ≤45(pf/m)

Delay 4.30(ns/m)

Conductor to Conductor 1.5(KV/DC)

Conductor to Shield 1.0(KV/DC)

Minimum Bending Radius 45 mm

Insulation Resistance 1500(MΩ.

Km)

Operating Temperature Range -55~165(℃)

Weight 32 (g/m)

Company Contact:

• Posted By: ShenZhen Light Speed Cable Technology Co.ltd

• Phone: 13049314331

• Address: 4nd floor, Building L, JingTie Ind. District, No.49th, Changjiangpu,Road, Yuansan,Longgang, shenzhen, , Guang Dong, China

• Email:

• Website: http://www.lightspeedtm.cc

• Business Description: Light speed cable technology, Co,Ltd, professional designs and manufactures high performance cables for RF and High data rate cable transmission applications.

  Our products include : Aerospace high speed data cables ( Mil-1394b high speed bus series, Mil-1553b high speed bus series.

  Aviation high speed ethernet series, Aviation high speed LD-PTFE wrapped cable, LVDS high speed data cable for aviation) Low loww, phase stable coaxial cable( phasestablecoaxialcable, low loss coaxial cable, RG coaxial cable), Aerospace high speed data cable assemblies /RF coaxial assemblies(Mil-1394b assemblies, RG coaxial cable assembly, Multi-channel bundled assemblies, Precision test armor assemblies, Phase stable coaxial cable assembly, aviation ethernet assemblies)

  We have 14 years R&D and produce Military Grade High Speed data cable and cable assembly experience.

  Our products have been widely used in the field of testing sytem, telemetry, remote sensing, aerospace field, flight control , data bus , defense, fighter, microwave weapon systems, ,ground weapon system, radar, warship, satellite communications/satcom, military and commercial application, ground satellite station, antenna and feeder,signal interconnection, flight enterfainment.

  medical application ).

  Light Speed Cable products offer advantages such as low attenuation,low VSWR,and High speed .

  The company's strong R&D team and production department possess superior domestic technology, ensuring reliable performance for customers and providing complete solution.

  Light Speed Cable is quality and service oriented manufactured ,quality certified according to GJB 9001C-2017 and GB/T 19001-2016/IS0 9001: 2015.

  You can choose our standardized product in our website (www.

  lightspeedtm.

  cc) or customized as your requirement.
