Activated Alumina Oxide Ball In Air Dryer - China

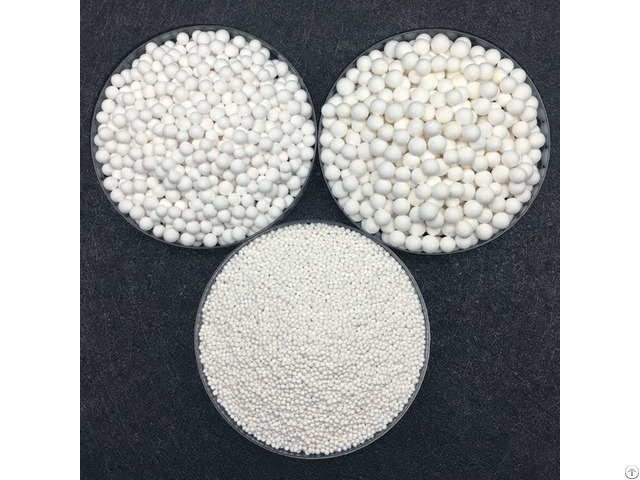

Activated Alumina is white spherical porous particles with uniform particle size.

Smooth surface, high mechanical strength, strong hygroscopicity, does not swell or crack after absorbing water, and remain intact, non-toxic, odorless, insoluble in water and ethanol.

Fluorine removal agent (large capacity for fluorine removal), defluorination agent for circulating alkanes in the production of alkylbenzene, deacidification regenerator for transformer oil, used for gas drying in the oxygen industry, textile industry, and electronics industry, drying of automatic instrument wind, and It is used as desiccant and purifying agent in chemical fertilizer, petrochemical drying and other industries (the dew point can reach -40 degrees).

In the air separation industry, the pressure swing adsorption dew point can reach -55 degrees.

It is an efficient desiccant for deep drying.

Chemical Molecular Formula:

Al2O3·nH2O (0˂n≤0.8).

Technical Parameter:

Properties Unit Data

Type - KA401 KA402 KA403 KA404 KA405

Crystal Type x x ϒ ϒ x

Chemical Composition Al2O3 wt% ≥93 ≥93 ≥93 ≥93 ≥93

SiO2 wt% ≤0.02 ≤0.02 ≤0.02 ≤0.02 ≤0.02

Fe2O3 wt% ≤0.02 ≤0.02 ≤0.02 ≤0.02 ≤0.02

Na2O wt% ≤0.3 ≤0.3 ≤0.5 0.15-0.3 ≤0.3

Physical properties Bulk density (g/ml) 0.68-0.72 0.70-0.75 0.65-0.75 0.70-0.80 0.72-0.78

Pore volume ml/g 0.30-0.45 0.30-0.42 0.40-0.46 0.40 0.30-0.50

Surface area m2/g ≥300 ≥300 260-300 ≥300 ≥300

Active wt% / / 56-62 / /

Attrition loss wt% ≤1.0 ≤1.0 ≤1.0 ≤0.4 ≤0.8

LOI wt% ≤8 ≤8 ≤8 ≤5 ≤8

Static absorption

(RH=60%) - Water

absorption Fluorine

absorption Water

absorption Water

absorption Water

absorption

wt% 17-19 0.2-0.3 50 50-70 17-19

Crushing Strength Φ1-2 (mm) N/pc ≥40 ≥40 / / /

Φ2-3 (mm) N/pc ≥70 ≥70 / / /

Φ3-5 (mm) N/pc ≥120 / ≥120 ≥120 ≥120

Φ4-6 (mm) N/pc ≥150 / ≥150 ≥150 ≥150

Φ5-7 (mm) N/pc ≥200 / / / ≥200

Φ6-8 (mm) N/pc ≥300 / / / ≥300

Φ12-14 (mm) N/pc ≥350 / / / /

Application：

● KA401: is for adsorbent.

● KA402: is for defluorination.

● KA403: is for absorption in producing H2O2.

● KA404: is for catalyst carrier.

● KA405: is for dehydrating and drying in air separation etc.
