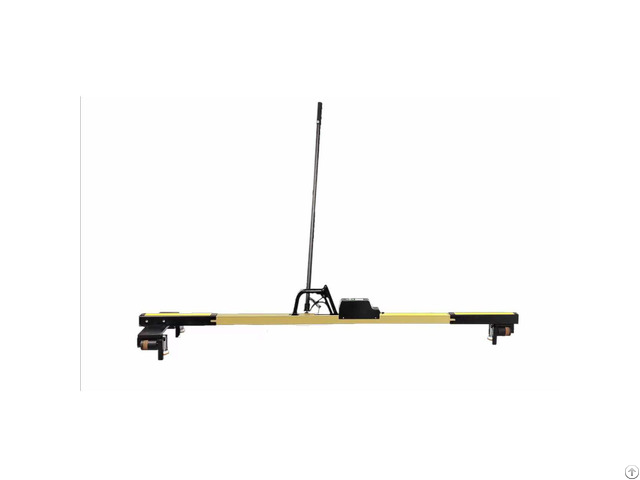

Geismar Amber Digital Track Geometry Trolley - China
price: 6000.00 Dollar US$
Model (1435mm)
GJC-JJG0
Track gauge(mm)
1384-1470
Gauge rail check gauge(mm)
1364-1450
Guard rail face gauge(mm)
1344-1430
Superelevation measuring range
-200~+200
Flangeway Clearance
20-107
Display mode
OLED display and hand-held terminal display
Supply Voltage
DC3.4V～5.2V (rechargeable battery)
Working temperature
-30℃～+55℃
Track gauge division value
0.01mm
Track gauge max indication error
≤±0.25mm
Superelevation division value
0.05mm
Superelevation error
≤±0.3mm
Weight
≤6.5kg
Application rail line
railway speed less than 350km/h
Customize
1000 1067 1435 1520 1600 1676 track gauge are available Features
1 - Large LED backlit display: especially suitable for day outside and dark night 2 - Quick calibration operation: simple
measurement process 3 - Large capacity battery: long standby time 4 - Accurate measurement: keep long-term stability 5 - Temperature
compensation : working temperature is -30~+55℃ 6 - Insulated design 7 - Anti-electromagnetic interference 8 - Waterproof: could use in rainy day 9 - power saving function: no operation within 15 minutes, the system will automatically shut down.
Company Contact:
- Posted By: Wuhan linkage track equipment co., ltd
- Phone: +8615671313697
- Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, Wuhan , Hubei , China
- Email:
- Website: https://www.linkrailtech.com
Published date: April 17, 2024
- Business Description: Wuhan Linkage Track Equipment Co., Ltd established in 2013 - We are the leading manufacturer for railway equipment which are being used all over the world.
The track equipment are manufactured keeping in view the stringent quality requirement and with utmost care and dedication to suit the requirements of our esteemed buyers all over the world.
