Traffic Accident Inflatable Lifting Cushion 200 300 Pressure Regulator Customized Sizes - China
price: check with company for price

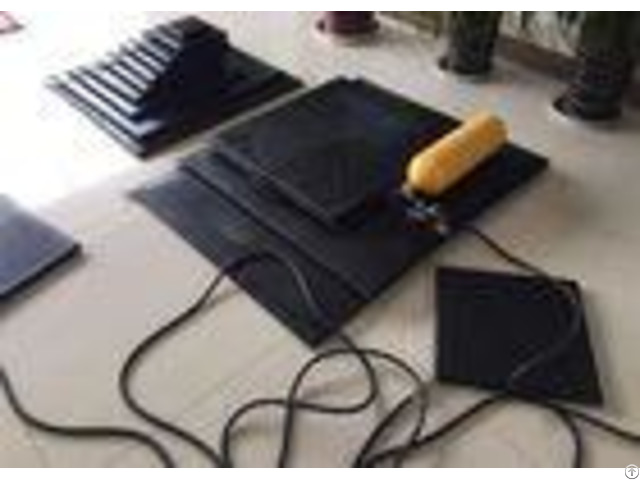

Size 37*37 Cm Of Traffic Accident Special Inflatable Rubber Lifting Cushion Advantages of ARD inflatable lifting cushion: 1 - Fast lifting speed (10000 - kilogram 4 seconds) 2 - Have a non-slip surface reticulate.
Safety performance is high, equipped with 200/300 pressure regulator 3 - 12 kinds of specifications, Lifting force: 1-68T 4 - Lifting height 50 cm, two overlapping of up to 100 cm 5 - Aromatic polyamide, containing high strength Kevlar rope 6 - Excellent antistatic, crack resistance, abrasion resistance, oil resistance, anti-aging properties, etc Constituent part of ARD inflatable lifting cushion: Lifting air cushion by high pressure gas cylinder, cylinder valve, pressure reducer, control valves, high pressure hose, fast interface, cushion, etc.
Using range of ARD inflatable lifting cushion: 1 - To rescue the weight sag staff 2 - After the earthquake disaster relief and rescue work 3 - Traffic accident rescue 4 - Narrow space rescue Specification of ARD air lifting cushion: - - - - Type | 1T | 3T | 5T | 8T | 16T | 18T | 20T | 30T | 40T | 54T | 68T | Size | cm | 15*15 | 25*25 | 30*30 | 35*35 | 46*46 | 50*50 | 56*56 | 65*65 | 75*75 | 86*86 | 96*96 | Thickness | mm | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.6 | 2.6 | 2.8 | 2.8 | Weight | kg | 0.7 | 1.9 | 2.8 | 3.8 | 6.2 | 7.8 | 9.7 | 13.4 | 18.8 | 23.6 | 29.7 | Insert height | mm | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | Max lifting height | cm | 7.5 | 12 | 16.5 | 20 | 27 | 28 | 30 | 33 | 40 | 47 | 50 | Max lifting force | kg | 1000 | 3000 | 6000 | 8000 | 16000 | 18000 | 20000 | 30000 | 40000 | 54000 | 68000 | Max pressure | bar | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | - - - - Working principle of ARD air lifting cushion: Ressure gas cylinder through the relief pressure regulator (valve), cut 25 mpa high-pressure air To 0.8 MPa, low pressure air 0.8 MPa low-pressure air by connecting two air cushion or two-way controllerTwo airbags, can complete two sets of lifting operations.
The controller has a two-way controller and the one-way controllerTwo types, as the name implies, two-way controller can connect two air cushion or two airbags, one-wayController can connect a mattress or a balloon.
The difference between the airbag and air cushion, airbag lifting forceSmall, high hoisting height, air cushion on the contrary.
Company Contact:
- Posted By: Qingdao Aorunda Rubber Industry Co., Ltd
- Phone: 86-532-85522886
- Address: No.60,Kongquehe 4th Road,Jimo City,Qingdao,China, Qingdao , Shandong , China
- Email:
- Website: https://www.marinerubberairbag.com
Published date: March 15, 2018
- Business Description: "Excellent creates cast brand, Sincerity creates future", Aorunda person do carefully work , remains honesty to people, looking forward to cooperating with more customers, to create further future.
