Small Jaw Crusher Machine Fine Brick Double Roll Crusheradjustable Tongs - China

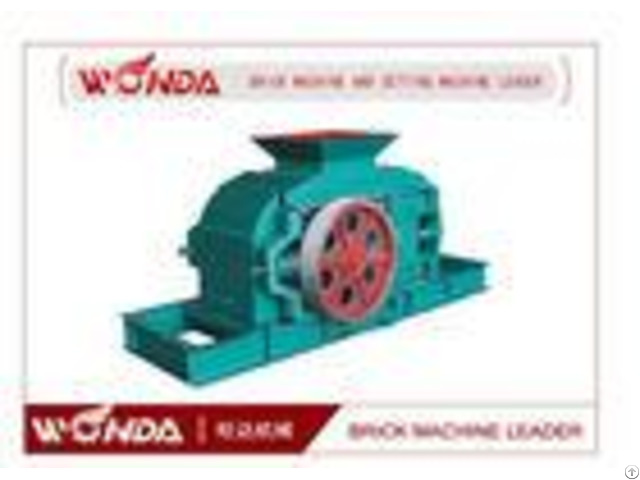

GS 1000 800 Steel Automatic Roller Fine Brick Crushing Machine Product Description Double roller crusher apply to the crushing of medium or lower hardness mines and rocks with medium or lower rigidity in mine selection, chemicals, refractory materials, cement and building materials industrial production, such as limestone, slag, coke, coal .

Double roll crusher also called two roller crusher, It applies to crushing medium hardness materials such as coke, sinter limestone, various metal ore and nonmetal ore.

It is suitable for medium and fine crushing in small and medium-sized nonmetal mines and chemical industry .

The minimum size can reach 100 mesh, this type of crusher is simple structure, convenient operation.

ideal final product can be achieved through adjusting the gap between rollers.

the performance is stable.

Working Principle The fixed part of roller and movable roller are driven by the motor via reducer and v-belt, the raw materials fall into the part between the two rollers from inlet of the machine.

The two rollers rotates inward simultaneously.

The materials are extruded, crushed and ground, then the end products come out from the bottom of this crusher.

The basic information - - - - Model NO.

| GS1000*800 | Object | Clay | Crushing Degree | Coarse Crusher | Principle | Roller Culling | Finished Surface | Outer Surface Process | Tongs Features | Adjustable Tongs | Capacity | 30-50m/h | Trademark | Wangda | Specification | ISO9001 | Type | Roller CrusherGS1000*800 | Drive | Electric | Crushing Style | Extruding and Milling | Cutter Material | High-Speed Steel | Dimension | 3500*1600*1550(mm) | Power | Y4-18.5KW Y4-22KW | Transport Package | Nude Packing | Origin | Nantong, Henan Province | - - - - Technical Parameterrs - - - - Type | Dimension(mm) | Production Capacity(m/h) | Motor Power(kw) | Weight(t) | GS600500 | 24001100900 | 10-20 | Y4-11kw Y4-15kw | 1.8 | GS800600 | 280015001400 | 20-40 | Y4-15kw Y4-18.5kw | 3.4 | GS1000800 | 350016001550 | 30-50 | Y4-18.5kw Y4-22kw | 5 | - - - - FAQ 1 - what's the raw material for producing bricks? Answer: clay, mud, gangue, shale etc.

2 - how much land area for building a new brick plant? Answer: it need above 20, 000 square meters, the land area relate with capacity 3 - when you need our proposal and quotation, what you have to mention in your inquiry.

Answer: please provide daily capacity, the brick size and you want to build a new brick plant or brick making machingery only.

so we can give the proposal and offer accordingly.

Product Show Workshop&Site
