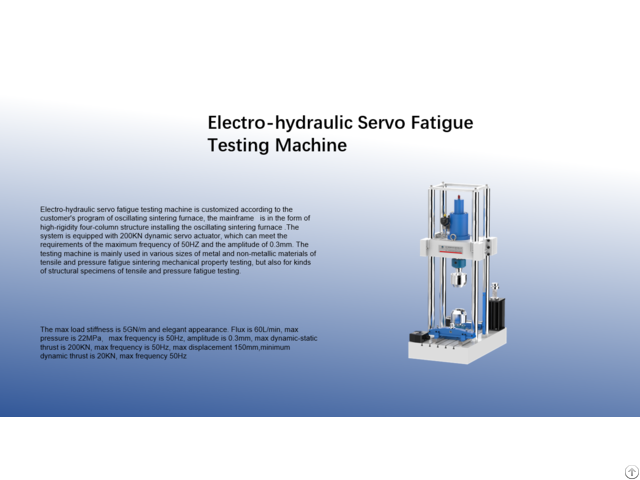

Electro Hydraulic Servo Fatigue Testing Machine - China
price: 3000.00 Dollar US$
Electro-hydraulic servo fatigue testing machine is customized according to the customer's program of oscillating sintering furnace, the mainframe is in the form of high-rigidity four-column structure installing the oscillating sintering furnace .
The system is equipped with 200KN dynamic servo actuator, which can meet the requirements of the maximum frequency of 50HZ and the amplitude of 0.3mm.
The testing machine is mainly used in various sizes of metal and non-metallic materials of tensile and pressure fatigue sintering mechanical property testing, but also for kinds of structural specimens of tensile and pressure fatigue testing.
The max load stiffness is 5GN/m and elegant appearance.
Flux is 60L/min, max pressure is 22MPa, max frequency is 50Hz, amplitude is 0.3mm, max dynamic-static thrust is 200KN, max frequency is 50Hz, max displacement 150mm, minimum dynamic thrust is 20KN, max frequency 50Hz
Company Contact:
- Posted By: Sichuan Dexkcyq Instrument Co.,Ltd
- Phone: +86 18183288416
- Address: No.192 Huaguan Road, Longtan Industrial Estate, CHENGDU , Sichuan , China
- Email:
- Website: http://www.dextest.com
Published date: May 21, 2019
- Business Description: DEX is a research base of high-end dynamic and static mechanical testing covers R&D, production, sales and technical services.
We provide the most abundant product line in the industry, such as rock mechanical testing system, dynamic mechanical testing system, structural mechanical testing system, static mechanical testing system, etc.
DEX gives full play to the team advantage, innovation advantage, design advantage and resource superiority for committed to become the integrated service provider with global influence, which involves the most advanced technology and product, efficient solution and all-around services.
