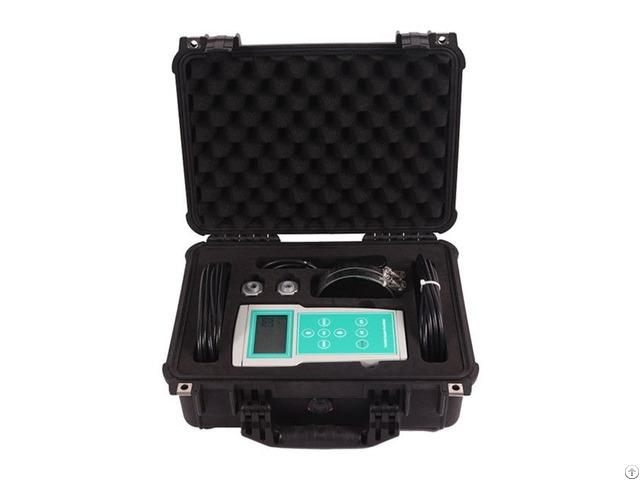

Doppler Handheld Ultrasonic Flow Meter For Sea Water - China

rechargeable battery could work up to 14 hours

suitable for pipe sizes from 40 to 4000 mm

for dirty liquid

low flow rate, low to 0.05 m/s

high temperature transducer is suitable to liquids of -35-200℃

4-20mA, oct output

2.0 calibrated span Specifications: Transmitter Measurement principle Doppler ultrasonic Resolution 0.25mm/s Repeatability 0.2% of reading Accuracy 0.5% -- 2.0% F.S. Response time 2-60s for optional Flow Velocity Range 0.05- 12 m/s Liquid Types Supported Liquids containing 100ppm of reflectors and at least 20% of the reflectors are larger than 100 micron.

Power Supply AC: 85-265V Enclosure type Handheld Degree of protection IP65 according to EN60529 Operating temperature -20℃ to +60℃ Housing material ABS Measurement Channels 1 Display 2 line × 8 characters LCD, 8-digit rate or 8-digit total (resettable) Units User Configured (English and Metric) Rate Rate and Velocity Display Totalized gallons, ft³, barrels, lbs, liters, m³, kg Communication 4-20mA, relays for Totalizer and alarm output keypad 6pcs buttons Size Transmitter: 235X125X45mm case: 410X320X80mm Weight 0.6kg Specifications: Transducer Transducers Type Clamp-on Degree of protection IP65 - IP67 or IP68 according to EN60529 Suited Liquid Temperature Std.

Temp: -35℃~85℃ for short periods up to 120℃ High Temp: -35℃~200℃ for short periods up to 250℃ Pipe diameter range 40-4000 mm Transducer Size 60(h)*34(w)*33(d)mm Material of transducer Aluminum for standard temp.

sensor, and peek for high temp.

sensor Cable Length Std: 5m
