Auto Hydraulic Rail Tamper Railway Ballast Tamping Machine - China

price: 12500.00 Dollar US$

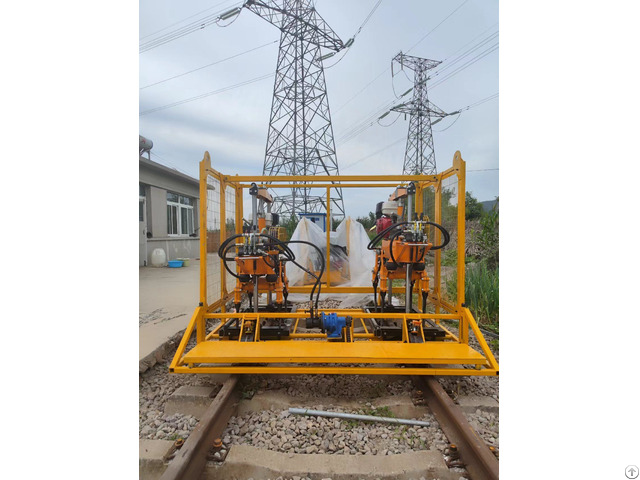

Auto Hydraulic Rail Tamper Railway Ballast Tamping Machine

Products Photos Catalog Auto Hydraulic Rail Photos Catalog

Model

YD-22III

Type

Automatic Hydraulic Rail Tamping Machine

Material

Stainless Steel

Dimensions (L x W x H) (mm)

2440*1860*2050mm

Engine

Honda GX390 four-stroke petrol engine9.5kw

Power

9.5kw

RPM

3600r / m

Hydraulic system pressure

5~6MPa

Vibrating frequency

66.7Hz

Exciting force

22KN

Clamping force

6.5KN*2 Inserting depth: 110mm +10mm

Production efficiency

≥260 sleepers/ hour

Weight

1275kg


Company Contact:


  • Phone: +8615671313697

  • Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, Wuhan , Hubei , China

  • Email: Email


Published date: December 16, 2024

  • Business Description: Wuhan Linkage Track Equipment Co., Ltd established in 2013 - We are the leading manufacturer for railway equipment which are being used all over the world.

    The track equipment are manufactured keeping in view the stringent quality requirement and with utmost care and dedication to suit the requirements of our esteemed buyers all over the world.
