Wear Resistant Heavy Duty Slurry Pump For Copper Mining Tailings - China

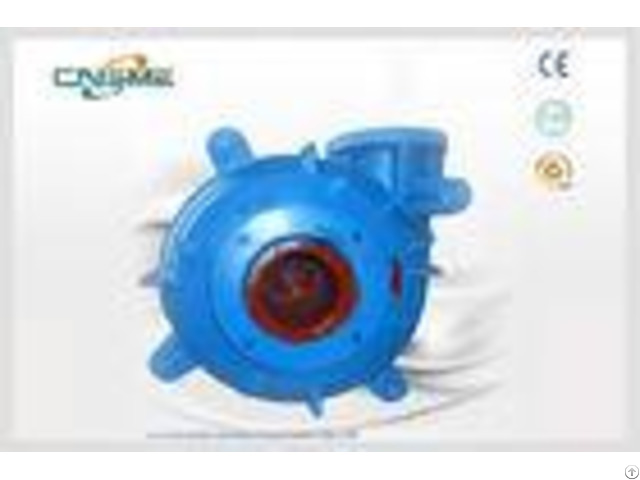

Wear Resistant Heavy Duty Slurry Pump for Copper Mining Tailings Introduction: Slurry pump 6/4E-AHis centrifugal, horizontal, single-casing, single-suction heavy duty slurry pump for a range of mill duties, from dirty water to the most difficult water flushed crusher services.

The shaft seal could use packing seal, centrifugal seal and mechanical seal.

The discharge side can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.

Heavy duty slurry pumps are widely used for mines, esp.

for the disposal of mining tailings, midlings, etc.

Specifications: - - - - Model | SH/100E (6/4E-AH) | Discharge Size | 4-inch | Flow | 162-360m3/h | TDH | 12-56m | Rated Motor Power | 120Kw | Speed | 800-1550r/min | NPSH | 5-8m | - - - - Information: - - - - Type | Size | Frame | Impeller: EG86137 | Shaft Seal | Frame Rating(kw) | Normal Max Speed(r/min) | Max Passage Size(mm) | AH | 100 | D/E | 5 Closed Type Metal Vans, Diameter: 365mm | Gland Packing, Expeller, Mechanical Seal | 60/120 | 1600 | 44 | - - - - Standard Material of Wet-end Parts: Hi-Chrome Alloy A05 Material Chemical Requirements, Weight% - - - - Description | Material Name | C | Mn | Si | Ni | Cr | Mo | Cu | P | V | S | Description | Hardness | A05 | Ultrachrome | 2.92 | 0.98 | 0.54 | 0.8 | 27 | 0.8 | .

| 0.062 | .

| 0.051 | 27% Cr Erosion Resistant White Iron | 58-62HRC | - - - - Typical Applications: Ash Handling Cyclone Feeds Pulp and Paper Abrasive Slurries Coal Preparation Mineral Processing Aggregate Processing Construction of SHSlurry Pumps: - - - - SH Series Metal Slurry Pump Specifications & Prices | | Pump Model | SD (inch) | Allowable Max.

Power (kw) | Material | Clear Water Performance | Impeller | Pricing | Capacity Q | Head H(m) | Speed n(r/min) | Max.

Eff.

% | NPSH (m) | No.

of Vanes | Vane Dia.

(mm) | Weight (kg) | Impeller | m3/h | l/s | SH/25B | 1.51 | 15 | Metal (A05) | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 | 91 | SH/40B | 21.5 | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 184 | 118 | SH/50C | 32 | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 214 | 191 | SH/75C | 43 | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 245 | 263 | SH/75D | 43 | 60 | 245 | 363 | SH/100D | 64 | 60 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 365 | 626 | SH/100E | 64 | 120 | 365 | 728 | SH/150E | 86 | 120 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 1473 | SH/150F | 86 | 260 | 510 | 1496 | SH/150R | 86 | 300 | 510 | 1655 | SH/200F | 108 | 260 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3193 | SH/200ST | 108 | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3750 | SH/250F | 1210 | 260 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 3760 | SH/250ST | 1210 | 560 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 4318 | SH/300ST | 1412 | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 965 | 6409 | SH/350TU | 1614 | 1200 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 1067 | 10000 | - - - - Outline Dimensions:
