Single Volute Vertical Slurry Pump With Long Lifespan Sv 200s Non Clogging - China
price: check with company for price

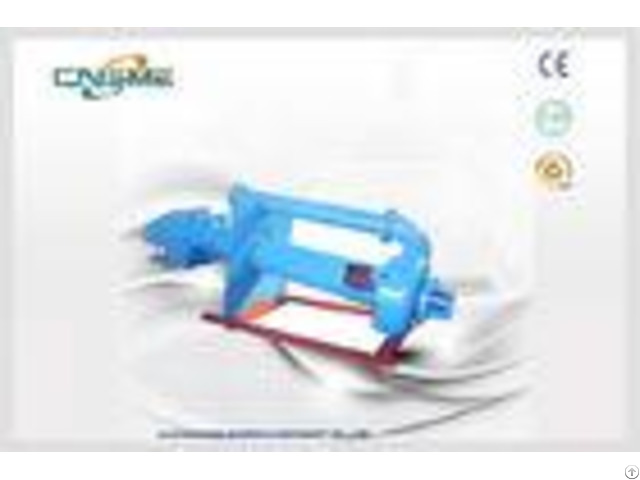

SV - 200S Metal A05 Vertical Pumps Single Volute Long Wear Life Introduction: The biggest character of SV-200S is that wet endparts have large material sections for extra long wear life and are designed for the toughest of applications.
Single volute and generous solids passage through the pump ensure safe and clogless operation.
All CNSME's sump pumps are designed specifically for abrasive slurries and feature robust design with ease of maintenance.
SV/200S vertical grout solid slurry pumps are vertical, centrifugal slurry pumps that in liquid to handle abrasive, large particle and high concentration slurries.
It can operate normally without shaft gland and shaft gland water, even lack of intake.
RS pump body is made from antifriction metal, the impeller is made from antifriction metal or rubber and polyurethane.
Submerged parts of the RS(R) pump coated rubber for transportation corrosive slurry.
Specifications: - - - - Model | SV-200S | Capacity | 189-891m3/h | TDH | 6.5-37m | Rated Motor Power | 110Kw | Speed | 400-850r/min | Max.
Efficiency | 64% | Standard Shaft Length | 2100mm | - - - - Construction of SV Sump Pumps: Materials of Construction: - - - - Part Description | Material | Casing | A05- High Chromium Alloy | Impeller | A05- High Chromium Alloy | Back Liner | A05- High Chromium Alloy | Shaft | Carbon Steel | Mounting Plate | Mild Steel | Strainers | Metal | - - - - Material: High Chrome Alloy A05 Performance Curve: Projects with Robust Vertical Pumps: Orders of Quality Sump Pumps:
Company Contact:
- Posted By: Shijiazhuang Minerals Equipment Co. Ltd
- Phone: 86-311-66692398
- Address: 260# West Huaian Road, Shijiazhuang, Hebei, China. 050051, Shijiazhuang , Hebei , China
- Email:
Published date: April 13, 2018
- Business Description: With a complete quality assurance system and strict manufacturing processes, we are here to offer our clients first-class products of super quality with perfect after-sale services.
You are welcome to Shijiazhuang Minerals Equipment Co., Ltd.
