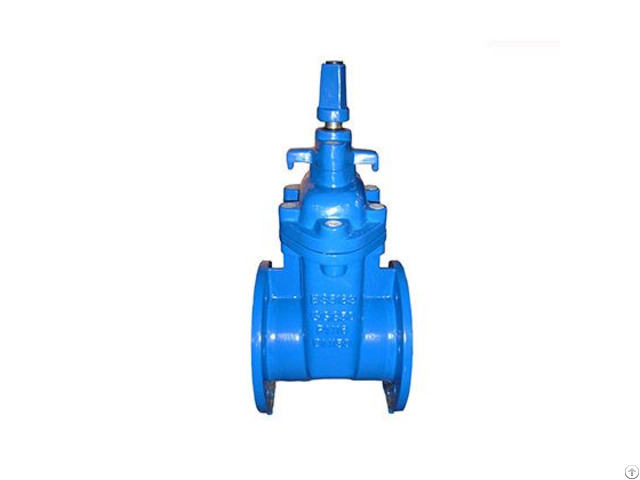

Resilient Seat Gate Valve Bs - China

Resilient seat gate valve-bs

valve size: dn40 – dn1200

pressure rating: pn6, pn10, pn16, pn25

material: cast iron(gg25) and ductile iron(ggg40 and ggg50).

design & manufacture: bs5163 type a, bs5163 type b

face to face dimension: en558-1 bs5163

ends dimension: bs4504 en1092

test & inspection: bs6755 en12266

drive device: handwheel, cap, bevel gear; electrical & pneumatic actuator

features:

leflow’s bs resilient seat gate valve has following options:

1 - several models both bs5163 a and bs5163 b are manufacturing, meanwhile, leflow also designs 3 types of bs5163 a gate valve—light, middle and heavy type to meet customers’ different requirement, their shape, weight and pressure rating are not same;

2 - both rising and non-rising stem are available;

3 - pn25 rating is available for size under dn300, dn600-dn1200 are our common product, and leakage rate can be grade a; by-pass is optional for big size valves;

4 - stem nut can be ductile iron, brass, bronze and other grade of brass alloy;

5 - extension stem, fixed or telescopic type, is available;

6 - surface box is optional;

7 - position indicator is available;

resilient seat gate valve, known as soft seat gate valve, is a commonly used pipeline valve, which adopts soft materials as sealing elements to achieve the control of valve opening and closing.

such valves are widely used in liquid, gas and other media flow pipeline.
