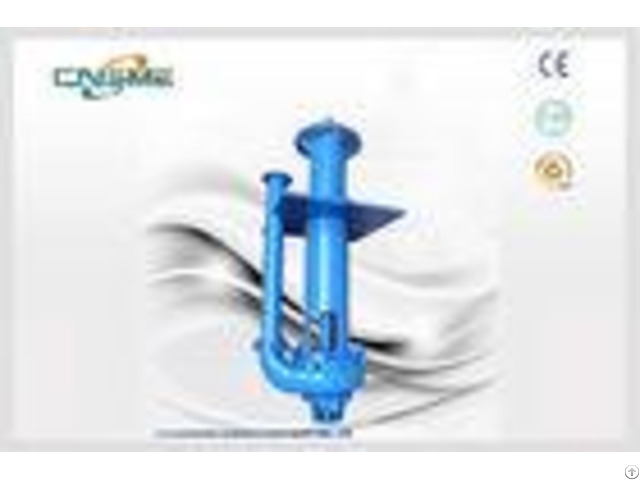

Customizable A05 Metal Vertical Slurry Pump With Prolonged Shaft Non Clogging - China

Customizable A05 Metal Vertical Slurry Pump With Prolonged Shaft Non Clogging Introduction: # 1 - The robust & durable vertical slurry pumps are designed and manufactured to operate in the most testing conditions.

Applications include minerals processing, coal preparation, chemical handling, sand and gravel and general tank, pit or hole in grould slurry applications.

# 2 - Our vertical slurry pump is customizable, the shaft can be extensible, it could suit customers' requirements.

# 3 - SME SV/SVR Heavy Duty Sump Pumps are available in various standard lengths to suit common sump depths, for very deep sumps or where high shaft speeds limit the length of the pump, a suction extension pipe can be fitted to the bottom inlet to extend the depth of the pump by up to 2 metres.

# Pumping is maintained even when the top inlet is not submerged, thus enabling the level of liquid to be lowered right down to the bottom inlet or the bottom of any suction extension pipe.

# To suit special requirements other pump wet ends can be fitted to the standard SME SV pump dry end.

# SME customers range from the world's largest mining and minerals multinationals to single pumpset operators.

# Look for high quality vertical slurry pumps? Don't miss SME.

Your inquiries will be handled within 24 hours.

Specifications: - - - - Model | SV-100R | Capacity | 54-289m3/h | TDH | 5-35m | Rated Motor Power | 75Kw | Speed | 500-1200r/min | Max.

Efficiency | 56% | Standard Shaft Length | 1500mm | - - - - Material: High Chrome Alloy A05 Material Chemical Requirements, Weight% - - - - Description | Material Name | C | Mn | Si | Ni | Cr | Mo | Cu | P | V | S | Description | Hardness | A05 | Ultrachrome | 2.92 | 0.98 | 0.54 | 0.8 | 27 | 0.8 | .

| 0.062 | .

| 0.051 | 27% Cr Erosion Resistant White Iron | 58-62HRC | - - - - Materials of Construction: - - - - Part Description | Material | Casing | A05- High Chromium Alloy | Impeller | A05- High Chromium Alloy | Back Liner | A05- High Chromium Alloy | Shaft | Carbon Steel | Mounting Plate | Mild Steel | Strainers | Metal | - - - - Construction of SV Sump Pumps: serial Number Parts Name Serial Number Parts Name 1 SHAFT 9 BACK LINER 2 BEARING 10 IMPELLER 3 BEARING HOUSING 11 PUMP CASING 4 BEARING SPACER 12 LOWER STRAINER 5 BEAIRING 13 DISCHARGE PIPE 6 SHIM 14 FLUSHING PIPE 7 COLUMN 15 COUPLING PART 8 STRAINER 16 MIDDLE SUPPORT PART Performance Curve: - - - - Type | Size | Frame | Impeller: SV10206A05 | Shaft Seal | Frame Rating(kw) | Normal Max Speed(r/min) | Max Passage Size(mm) | SV | 100 | R | 5 Open Type Metal Vans, Diameter: 390mm | Gland Packing, Expeller, Mechanical Seal | 75 | 1200 | 32 | - - - - Outline Dimensions of Vertical Slury Pump SV/100R:
