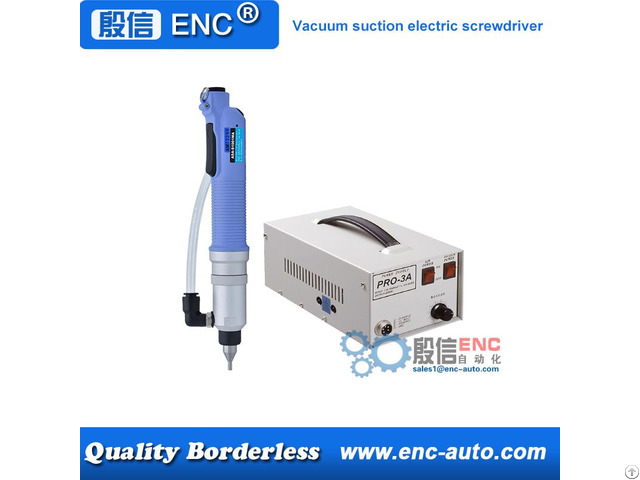

Vacuum Suck Suction Type Electric Screwdriver - China

Features:

1) This kind vacuum suck suction type electric screwdriver is equipped with Swiss brushless motor, So no spark, no carbon dust.

2) Soft start-up and low inertia decrease the looseness rate of screw fastening.

3) Body diameter Ø26mm, overall length 158mm and weight 187g, The most compact electric screwdriver in the world.

4) Large range of torsion adjustment of 0.15~6.0kgf.

cm².

5) Permits continue working for 20, 000 hours(about 10 years) at least, The service life if the contact point withstands 10 million on and off contacts.

6) Passed SGS clean room class-10 test.

Can be used in the 5C workshop.

Pick up the screw with vacuum air.

7) Can meet plastic, copper, silver screw.

Adjusting the sucker to meet many different size screw.

Model and specifications:

Model: ASA-S2500MA

Applicable controller: PRO-3A

Working vol: 9~30 V

Torque range: 0.4~3.0 kgf.

cm²

No load speed: 450~700 rpm

Applicable Screwdriver Bits: Ø4, Ø5

Applicable thread diameter of machine screw(mm): 1.0~2.2 mm

Applicable thread diameter of tapping screw(mm): 1.0~2.0 mm

Length：198mm (ASA-S1000MA~S2500MA); 242mm (ASA-2000MA~4000MA)

Weight：290g

Company Contact:

• Posted By: ENC automatic machine (Shanghai) Co.,Ltd.

• Phone: 18301786646

• Address: Room 1233,Building 2st,No.380,Huihuang road,Jinhui town,Fengxian district, Shanghai , Shanghai , China

• Email:

• Website: http://www.enc-auto.com/en/

• Business Description: ENC Automatic Machine (Shanghai) Co., Ltd. is founded in 2013, Which is committed to the design and manufacture of automatic screwing machine.

  Our product contains of basic handheld screwing machine, single spindle screwing machine, X-Y table screwing machine and complex multi-spindles screwing machine, multi-stations screwing machine, automatic production line.

  Integrated with conveyor, rotation table and robot arm, our company had designed and manufactured many sets automation equipment and make it is possible maximize the efficiency of automation equipment, save more labor cost, enhance productivity.

  Make the screwing is never the bottleneck of industry.

  In recent years, ENC-Auto inputs more and more money and vigor into the research and development of automation equipment, to supply more economic and more accurate equipment to user.

  Up to now, Our equipment had been sold to European and American markets, Asia market and Australian market.

  We are the long-term supplier of many domestic and international famous brand company.
