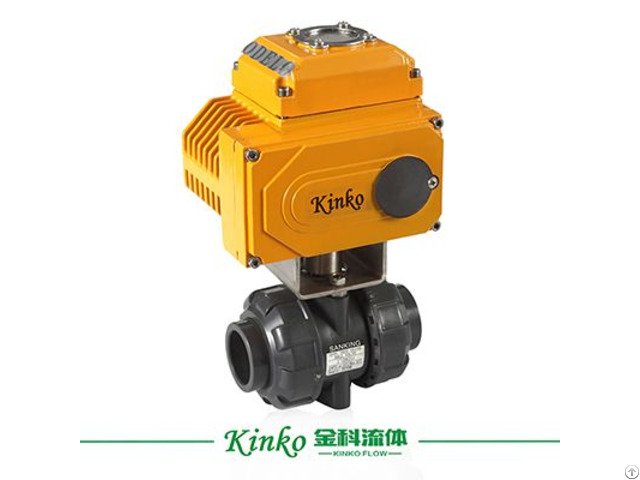

Upvc Plastic Double Union Electric Ball Valve - China

Ball Valve Specification Product Name Q991X-10U

Drive Way electric

Valve Type ball valve

Connection ferrule

Structure floating straight through

Seal Material rubber NBR

Working Pressure 0~1.0Mpa/150LB

Medium Temperature -20℃~+120℃

Applicable Medium water, steam, natural gas, oil, food, medicine, acid, alkali

Body Material UPVC

Port Size DN15-100

Actuator Material Aluminium Alloy

Actuator Model KK-05~KK20

Circuit Control type ON/OFF type

Rotary Angle 90°

Output Torque 50~200 N/M

Voltage DC24V/110VAC/220VAC/380VA C

Insulation Resistance 100MΩ/500VDC

Working Temperature -20℃~+60℃

Voltage Resistance Rating 1500VAC/minute

Protection Level IP67

Build-in function thermal protection

Installation Position rotary degree 360

Standard GB/JIS/ANSI

Optional function dehumiditifier Shrink film+Polyfoam+Carton/Plyw ood Case/Customer Requirements Our difference with others

1) All bolts & Nuts are SS304

2) All Piston are hard anodizing

3) Packing: Foam + small carton box to protect goods

4) Laser fonts on body
