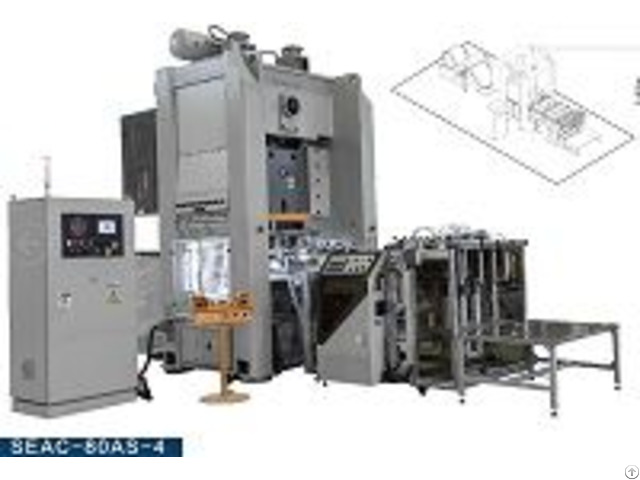

Complete Automatic Aluminium Foil Container Making Machine - China
price: 68000.00 Dollar US$
Model: SEAC-80/110AS (Four Cavities or Five Cavities Capacity !)
Units: Automatic Feeder+Automatic 80Ton H Type Press+Cavities Mould+Auto Stacker+Scrap Sucker & Auto Presser.
It fit for all common size Aluminum Foil Container production requested.
The Big capacity could to cover big range of size products.
Lower power requested than other old model machines.
Specification:
1 - Raw material: Aluminum foil; Thickness: 0.030mm ~0.280mm;
Alloy: 8011, 8006, 3003, 3005; Temper O to H24;
2 - Good Japan's Inverter, PLC and 10inch Touch Screen control system;
3 - Max.
width of Aluminum foil: 1200mm;
4 - Max.
diameter of Aluminum foil: 800mm;
5 - Core diameter of Aluminum foil: 76mm(152mm as Optional );
6 - Working speed: 40-68 times/min;
7 - Total Power: 14kw+2kw+2.5kw+3kw;
8 - Compressed air needed: 0.5- 0.8 Mpa, 0.4m3/min;
9 - Install dimension: 6400*2600*3600mm;
Technical Data:
Max.
mould size: 1400*1000*480mm;
Slide block stroke: 150-260mm ; (Offer Stroke adjustable system as option!)
Automatic mould adjust unit: 0.5kw;
Work plate dimension: 1500*1000mm;
Mould handle hole dimension: 80*80mm(Diameter*Depth);
Power: 4P, 380/220V, 50/60Hz;
Net weight: 13, 000kg.
Company Contact:
- Posted By: Shanghai Silver Engineer Industry Co., Ltd.
- Phone: 18229603435
- Address: songjiang , shanghai , shanghai , China
- Email:
- Website: http://www.silverengineer.net/
Published date: July 1, 2016
- Business Description: SE focus on Aluminium Foil Packaging production technology innovation, designing and manufacturing.
Plays an important role in Aluminium Foil Container Production Machine, Household Aluminium Foil Roll Production Machinery Project, Pop Up Foil Sheet Machine and Related Special Industry Technology and Machinery etc.
since on 2008.
