Cable Harness Probe Pogo Pin CHZ200 for Electronic Test Harness probes are mainly used directly or for the tests of automotive industry.

Parts of them are also applied to communication electronics, medical equipment, equipment automation, etc.

The standard and requirements for them are high compared with other test probes.

Harness probes can be divided into screw-thread harness probes, harness switch probes, non-screw-thread harness probes, position-limited harness probes and high-current harness probes, etc.

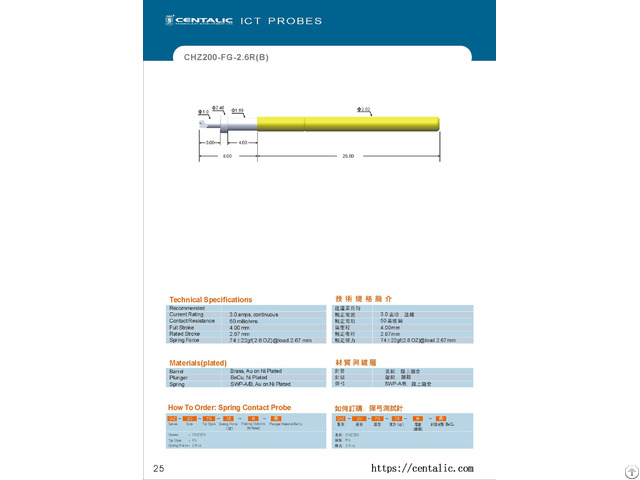

The CHZ200 harness probe we will introduce here is 2.02 mm in diameter and 33 mm in total length.

Its barrel is made of brass plated with gold and nickel.

The plunger is made of gold-plated beryllium copper, which is softer but less magnetic than the alternative SK4 - The spring inside is made of music wire plated with gold and nickel.

This probe can withstand up to the current 3 Amps.

Its typical maximum contact resistance is 50 milliohms.

It is suggested the plunger be pressed at a distance of 2.67 mm at most when this probe works, although the plunger can move as far as 4 mm.

Otherwise, the spring inside the barrel will probably be damaged under constant pressure.

When the plunger is pressed at a distance of 2.67 mm, its loaded force is about 74 gf, namely 2.6 ounces or so.

Technical Specifications

Recommended Current Rating: 3 Amps, continuous

Contact Resistance: 50 milliohms

Full Stroke: 4 mm

Rated Stroke: 2.67 mm

Spring Force: 74±22 gf (2.6 oz) at load 2.67 mm Materials (plated)

Barrel: Brass, Au on Ni Plated

Plunger: Beryllium Copper, Au on Ni Plated

Spring: SWP-A/B, Au on Ni Plated Company Information

Centalic Technology Development Ltd. was founded in 1980 - Specializing in R&D, manufacture, sales and technical service, Centalic is one of the earliest high-tech enterprises which concentrates on large-scale production of various test probes and precision metal parts, and has a professional manufacturing base owning complete production lines and test equipment.

Our products include semiconductor test probes, in-circuit test probes, radio frequency probes, harness probes, battery contact probes, switching probes, big-current probes, spring probes, universal complex test probes, wafer probes, and so on.

They are widely applied to the tests of various electronic products, such as in-circuit tests of semiconductor components, chips, PCB and other electronic peripherals.

Our company owns professional R&D, production, sales teams under the working principle of 'quality, punctuality, confidentiality' to totally efficiently develop test probes in accordance with the requirements of customers' test projects and meet the needs of customers for mass production as well as developing markets.

With many years' continuous endeavour of our staff, Centalic has built a solid foundation in this industry and our products have been sold all over the world.

Welcome to browse our website and download any catalogs of our products.

If you need a complete set of product manual, please feel free to contact us.

Many products are not uploaded due to a huge range.

If you can't find what you need, please feel free to contact us.
