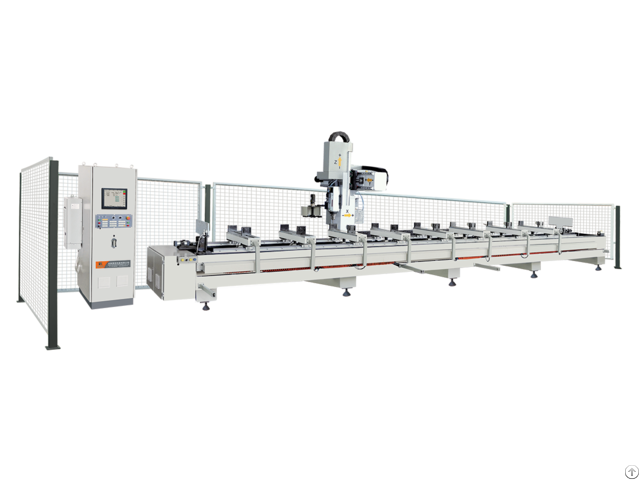

Aluminium Curtain Wall 3 Axis Milling Machine - China

1 - Advanced industrial CNC 4-axis profile machining systems, friendly machine interface with use-friendly operation.

2 - Suitable for aluminum, aluminum / wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing.

3 - The milling head can drill within a range of 90 ° ~0 ° ~-90 ° with according tools at any position.

4 - The machine completes milling, drilling, tapping, chamfering, grooving and other multi-functional precisely in one time, the profile was conveyed by the precise stationary avoid profile damage.

5 - Adopts imported high precision linear guideways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing in high precision

6 - High-quality imported automatic tool change based on automatic travel magazine, minimum the tool change time and rotation noise, maximum stability, precision, and cutting ability

7 - Magazine is equipped with 8 as standard or more station capacity, adjustable pneumatic special fixture to ensure efficient processing

8 - A-axis angle from 0-180°free travel continuously.

9 - Double working area for two kinds of profile loading, milling one after another, interactive feeding, non interference

10 - Multiple safety protection structure to ensure operator safety, Industrial PC control 2.5 D operation with 19’’ color monitor.

11 - RJ 45 10/100Mbit network as the standard

12 - USB Connection, CAD input data, or writing by hand on the computer

13 - High strength welding structure, heat aging and annealing processing, guarantee high rigidity and high stability

14 - UPS protection systems.

15 - Special Air Conditioner is standard equipped for tropical climate region to protect controlling system.

Parameter:

X-axis Traveling 7180mm Y-axis traveling 1220mm(4 axis)

X-axis working stroke 7000mm Y-axis working stroke 435mm

X-axis feed rate 0~60m/min Y-axis feed rate 0~48m/min

X-axis positioning accuracy ±0.05mm Y-axis positioning accuracy ±0.02mm

Z-axis traveling 600mm Repeat location accuracy ±0.02mm

Z-axis feed rate 0~20m/min Roughness Ra 6.3 um

Z-axis positioning accuracy ±0.02mm A-axis travel ±95°

Z-axis working stroke 300mm A-axis positioning accuracy ±1’

A-axis feed rate 300r/min Spindle Speed 0~24000rpm

Spindle Power S1: 7.5kW Machinery Weight Power Specification 380V/50Hz Total Power of Machine 12.5kW

Working Pressure 0.6～0.8MPa Machine Size 11300×2350×2550mm Main accessory:

Servo system： PA

Servo motor & Driver：YASIKAWA

Reducer：Taiwan-APEX, Korean-SG

Rack：Altanda Germany

Spindle：Imported from Italy

Guide, Ball screw：PMI /HIWIN / ABBA(TAIWAN)

Electric apparatus：schneider, siemens.

Pneumatics：SMC, AirTAC

Cutter holder, contracting chunk：imported from Italy

Standard accessory:

• Certificate: 1pc • Operation Manual: 1pc • 3 pcs ISO30 CONES or HSK-F63 - • Ø 8mm collets 2 pcs; Ø 12mm collets 1 pc.

• Automatic lubrication, air filter • 8 clamping systems
