Titanium Alloy Tube Sheet Heat Exchanger - Chinaprice: 100.00 Dollar US$

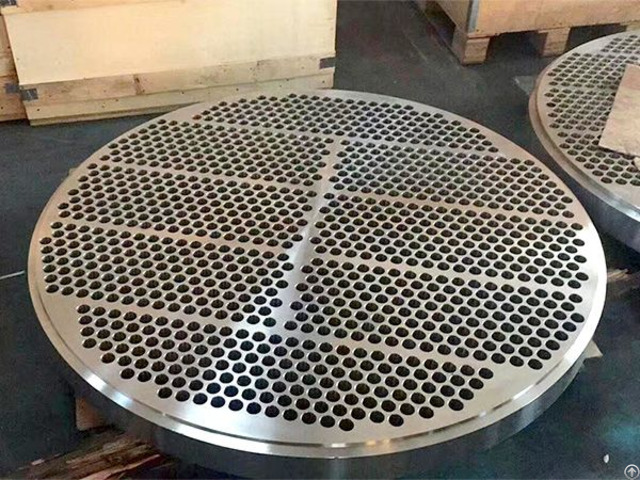

Titanium alloy tube sheet
Tube sheet is one of the main components in a shell & tube heat exchanger, have holes drilled to accept a series of tubes inside of an enclosed tubular pressure vessel.
The tube sheet itself serves as a supporting element in heat exchangers and boilers.
Tube sheets have different sizes and a series of holes are done to create a place where the tube ends are welded.
Also called tube plate.
There are two types: floating tube sheet and stationary tube sheet.
Titanium tube sheet is Corrosion -resistant in seawater, Salt, Alkali, Acid and are produced from hot rolled or forged Titanium or Ti alloy plate.
Titanium have Follow features:
1 - Low Density and High Strength
2 - Excellent Corrosion Resistance
3 - Excellent Bearing to Cryogenics Property
4 - Good Thermal Properties
Based on these features, It is widely in following applications:
1 - mechanical equipment like tube shell heat ex-changer, plate heat ex-changer, electroplating equipment etc.
2 - Chemical industry like Salt, Alkali, Acid, medical, food, polymer production, Pulp and paper production.
3 - seawater projects, marine engineering.
Depending on the final application (petrochemical, nuclear, oil&gas, etc.
) the tube sheet can be cladded with Stainless Steel or other Super Alloys or even be entirely made out Stainless Steel or Superalloys.
Typical Hole Patterns
The most common types of holes experienced in tube sheet dilling are triangular, rotated triangular, square and rotated square.
Each hole pattern presents its own dilling challnges.
See typical pattern types below.
Tube plate is widely used in tubular heat exchangers, boilers, pressure vessels, steam turbines, large central air conditioners, condensers, evaporators and other products.
The metal material makes it not only rigid, but also has great heat conduction performance.
The precision of tube plate processing, especially the tolerance of hole spacing and diameter, perpendicularity, and finish greatly affect the assembly and performance of the equipment listed above.
3 - Standard and material grade
Forged Tube sheets, A182 F304/304L, A182 F316/316L, A182 F321, A182 F310S, A182 F347H, A182 F316Ti, 317L, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541, 254Mo and etc.
Duplex stainless steel Tube sheets: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750, UNS32760, 1.4462, 1.4410, 1.4501 and etc
Stainless steel Tube sheets ASTM A240 304 304L 316 316L, 904L
Titanium Tube sheets ASTM B265 GR1、GR2、GR3、GR5、G R7、GR12 - tube sheet/baffle plate
Forged Titanium Tube sheets ASTM B381 GR F1、GR F2、GR F3、GR F5、GR F7、GR F12 - tube sheet
Carbon steel tube sheet: A105, SA266 - GR2, A350LF2, Q235, St37, St45.8, A42CP, E24, A516 Gr60, A516 Gr 70, S235JR
Nickel alloy tube sheet:
inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C-276, Monel400, Alloy20 etc.
Cr-Mo alloy tube sheet: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc
Copper nickel tube sheet SB171 C70600, C71500 TUBESHEET/BAFFLE/FLANGE.
Naval Brass tube sheet SB171 C46400/C46500 TUBESHEET/BAFFLE/FLANGE
Aluminium bronze tube sheet
SB171 C61300/C61400/C63000 TUBESHEET/BAFFLE/FLANGE
Brass tube sheet, baffle, flange.
Cladding tube sheet SA516 - GR70+SB171 C71500 SA516 - GR70+ASTM B265 GR2
SA240 316L +ASTM B265 GR2 Duplex+carbon steel Specification
OD40-6000MM, Thickness from 5mm---300mm Manufacturing Process
ingot billet &round bar-- chemical element analizing---bandsaw cutting---forging---heat treatment---inspection--s tock of unmachined blanks---lathedeep hole drilling---inspectction-- -marking---packing with plywoodcase.
Packing in plywood case, protected by soft packing material like PE film, Bubble bag Etc.
- Posted By: Hunan Jetvision Industrial Co.,Ltd
- Phone: 073182224155
- Address: Laodong West Road, Changsha , Hunan , China
Published date: August 17, 2021
- Business Description: Heat transfer division as a branch company of Group Hunan Jetvision Industrial Co., Ltd. We have grown to be a professional supplier in key customized components of Shell-tube HE .
Offer one-stop service to our client,main products including tube-shell HE----like U tube, tube sheet,shell flange,baffle plate etc.
We have served various industries spanning from chemical,HVAC, district cooling, power, oil & gas, pharmaceutical, pulp & paper, palm oil , food & beverages and many others.
Together with our experienced technicians and engineers, we develop and manufacture products of the highest quality according to our customers needs.
Our vision is guided by market to provide efficient heat transfer technology solutions to meet clients needs.
