Acoustic Movable Walls - China

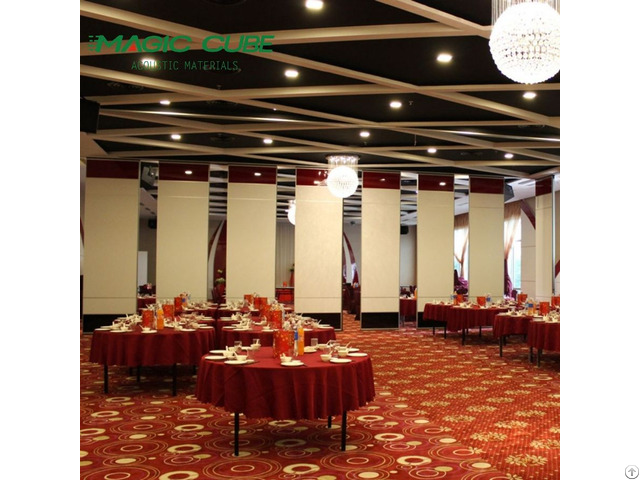

The introduction

The acoustic movable walls brings great convenience to people's work.

For example, you can fold it on one side when you need it, so that the two spaces are temporarily joined to make them appear larger, which is convenient for temporary departmental meetings.

Another example is the high partition of activities.

Generally, our company's factory buildings may be rented.

For various reasons, we will inevitably have to change places.

At this time, the disadvantages of traditional partitions are easily revealed, because you cannot take away the components that belong to the house.

On the contrary, the sliding movable walls can be removed, taken away, and reorganized, so the acoustic movable walls has the reputation of decoration that can be taken away.

The composition

The acoustic movable walls is generally composed of several parts such as track, horizontal wheel, sealing strip, outer frame, surface material, sound insulation material, transmission rod, and sealing rubber strip.

1 - Rail: The material is made of 6063-T6 anodized aluminum, which is used for lifting and supporting the movable partitions.

2 - Double horizontal hanging wheel: the material of the roller is POM, and the screw material is made of No.

45 quenched and tempered steel.

The hanging partition wall panel can be rotated at any angle on the horizontal plane, and it can smoothly pass through the L, T, X of the rail intersection.

3 - Hanging wheel base: The material is A3 steel, which connects the double horizontal hanging wheel and the screen.

4 - Upper layering strip: The material is anodized aluminum, which seals the gap between the screen, the ground and the ceiling, and the sound insulation doubles as a fixing function.

5 - Sealing tape: The material is PVC polyvinyl chloride, and the surface color is black, which can seal sound and light, and have a cushioning effect on contact with the wall.

6 - Base partition panel: fire retardant MDF panel, all complying with GB/T11718-1999.

7 - Sound insulation cotton: PAR fiberglass panel is used, and the fire resistance, thermal resistance and noise reduction coefficient are all in line with the relevant ASTM standards.

8 - Frame sealer: The material is anodized aluminum, and the vertical inlay lock can seal the sound leakage from the narrow gap of the screen frame.

9 - Telescopic mechanism: The material is standard No.

45 steel and spring steel, and the pressure spring operation can automatically adjust the gap between the screen and the ground.

10 - Stirring lever: The sliding movable walls is standard 45 steel, used to operate up and down, left and right telescopic mechanisms.

11 - Bullet cover: The material is standard No.

45 steel, the surface is black chrome-plated, and the spring is built-in to protect the rod device.

FAQ Q: How long is the production time of the acoustic movable walls?

A: First of all, it takes 3-5 days for samples and 10-20 days for production.

Q: Do you have a minimum order quantity limit for acoustic movable walls orders?

A: The minimum order quantity is 10 square meters.

Q: What are your payment terms?

A: T/T is 30% of the deposit and 70% before delivery.

Before you pay the final payment, we will show you the photos of the product and packaging.
