Heat Strengthened Tempered Glass - China

Tempered glass is manufactured through heating common glass uniformly to the softening point and then being quenched.

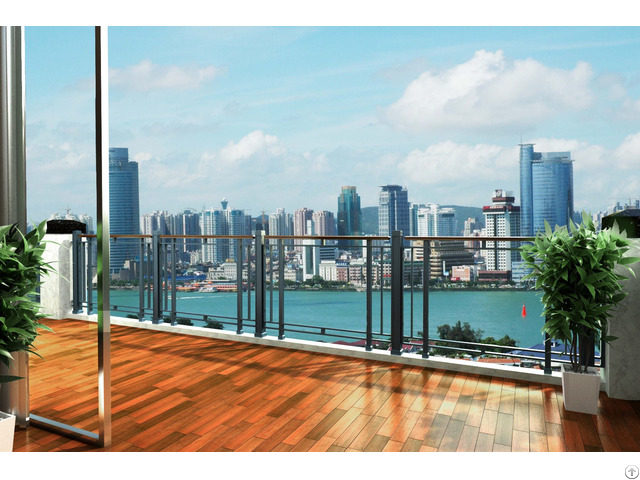

With high strength and thermal stability, tempered glass can be widely used in the places with special requirements on mechanical strength and security, such as glass Curtain Walls, Partition Wall, Balustrade, Door & Window, Shower Room, Furniture, Automobile, Trains, Ships and the places with high temperature difference.

Features: Security: tempered glass will be broken into small honeycombed obtuse grains due to external force, and it will not result in serious bodily injury;

High mechanical strength: high impact resistance and flexural strength, Anchor;

Thermal stability: tempered glass possesses superior thermal stability, which makes its(it) stand 3 times high temperature than common glass.

Production Capacity: Flat Tempered Glass: Max.

3300*15000mm; Min.

85*245mm

Bent Tempered Glass: Max.

3660*2440mm, Min.

600*400mm

Min.

Curvature of Bent Tempered Glass: 1200mm

Thickness: 4-19mm

Glass Type: Clear, Tint, Patterned, Acid Etched, Ceramic Frit/Silk Screen, Laminated

Process: Complete tempered; Heat Strengthened; Heat Soaked, Grind edgework, Polished Edgework/Louvre, Hole, Cutouts Productivity: 1.8 million m2/year

Technical and Quality Standards: Complying with Chinese GB15763.2-2005; American ANSI Z97.1-2004; European EN12150-1; Australian standard AS/NZS 2208-1996

Company Contact:

• Posted By: Qingdao Pioneer Glass

• Phone: +8615066858782

• Address: East Kunlunshan Road, Taihangshan Road, Qingdao , Shandong , China

• Email:

• Website: http://www.qdpioneerglass.com

• Business Description: Qingdao Pioneer Glass Co., Ltd is located in the beautiful Huangdao District, Qingdao.

  It is adjacent to the Qingdao Port and the Merchants International Terminal to the south and to the Tongsan and Jiaozhou Bay Expressway to the west and contiguous with Qingdao float glass base of Saint-Gobain Glass (France), Qingdao float glass base of Taiwan Glass and Qingdao patterned glass base of Jinjing Glass.

  It is convenient in traffic and predominant in geographical position.

  As an integrated intensive glass processing enterprise, it is specialized in the production and processing of laminated glass, tempered glass, Insulating glass, glass mirror, decorative safety glass and special glass.
