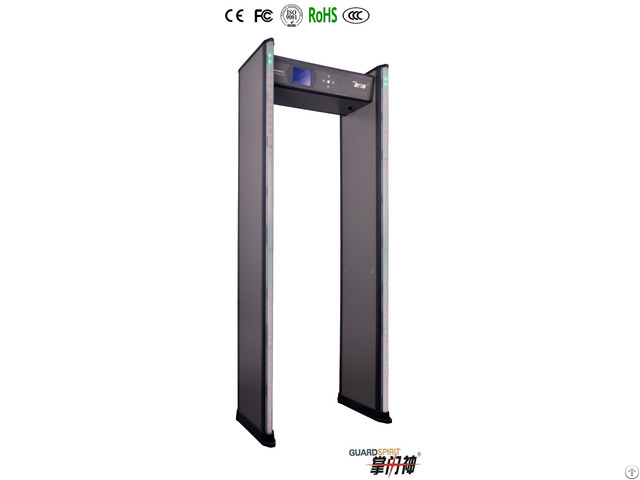

Walk Through Metal Detector Xyt2101lcd - China

Technical parameter

Electric current: AC85V~264V/50-60HZ

Power: <20W, low consume, low radiation

Gross weight: 70KG

Workplace environment: -20℃~+50℃

Standard: GB15210-2003, CE

Standard External size: 2230mm(H)X835mm(W)X580mm( D)

Standard Internal size: 1990mm(H)X700mm(W)X500mm( D)

Characteristic & Function

- 5.7 inch LCD screen with Infrared remoter controller

- Adopt advanced digital signal processing control replaced

traditional analog signal control, better stability.

- Friendly windows interface, both Chinese and English program, easy to operate.

- Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.

- Automatically count passengers and alarm times, keep alarm records for inquiry (up to 20000 records)

- Detecting Zones: 6 detecting loops, can extend to 12, 18zones by separate left, right, , middle side detection to pinpoint detection（As follow picture）

- Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements.

Preset the metal size, weight, volume, location to exclude the coin, key, belt.

- Sound Alarm: 1-25s alarm time, 255 different sound volume and 12 tones for choose

- LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles

- Lock and Password protection, only the authorized person can operate.

- Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference

- 6 preset programs for security application versatility

- 4 hours Battery backup , the uninterruptible power protection system secure the parameters when power off.

- PVC material and Control unit on the top, waterproof, moisture-proof and cooler.

- Integrated and modularized circuit design lead to simple installation and more convenient after services.

- Adjustable Passing speed: up to 100 persons/min

- Background light: 0-99 seconds for choose

- Calendar function: real time display year, month, date, hour, minute, second

- Harmless to heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
