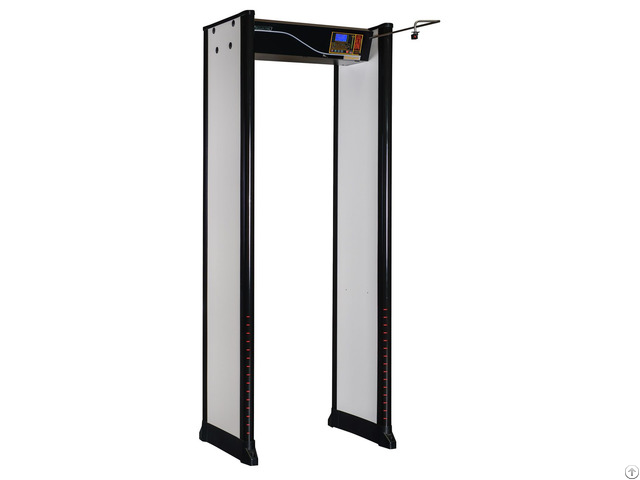

Walk Through Metal Detector Thruscan Sx - Turkey

International norms (NILECJ-0601 L1-5/IP44/EN60950 Class1) In conformity with CE European Union Norms and produced under ISO 9001: 2008 QMS

Certified in Compliance to EN 61000-6-3, EN 61000-6-1 regulations and in compliance with DIRECTIVE 2002/95/EC (restriction of the use of certain hazardous substances in electrical and electronic equipment)

Multi-Zone - 9 Real Matrix Detection Zones(Up/Middle/Down and Left/Middle/Right)

Separate Sensitivity Settings for Different Detection Zones

Whilst Normal Operation, displays IN/OUT Counters and Security Level on LCD without abbreviations so that Security Sta can easily understand

Capable to Detect both Ferrous and Non-Ferrous Metallic Threat Objects Considered Dangerous by International Security Authorities.

Can detect when tested both individually and in combination.

Displays Location of the Detected Metal Objects with Continuous LED Zone Indicators on Both Side Panels from top to bottom

Detects all threat objects even concealed, hidden with camouflage and/or wrapped.

Impossible for such threat objects to pass through the WTMD without causing an alarm.

No Interferences between Zones and No False Alarms

Homogeneous Magnetic Field – No Dead Points – Same Detection Capability from bottom to top

Detects Metals regardless their orientation

20 sensitivity levels, 246 adjustable sensitivity steps at each, Preset NILECJ Sensitivity Program, - 7 Preset Security Programs

Automatic Frequency Selection Feature

Metal Density-Mass, Signal Strength Display at 10-level-VU meter with green, yellow, red LEDs easily allows sight from distance

Superior Discrimination, Pin Point target location identification with Graphical zone display on Control Unit

Auto Calibration (Automatically calibrates itself up to Environmental Conditions) No Set Up Changes necessary when relocated and/or new Magnetic Objects brought Near-By

Human Health friendly Very Low Frequency VLF technology, No reacts to Pace Makers, Pregnant and Magnetic Media

Green/Red bicolor trac through LEDs easily allows sight from distance 60 Persons/Minute and LED Alarm Indicators on side panels

Operation Mode, Programming Parameters and Error Codes are Displayed on Wide 64x128 Characters GLCD Screen

Real Time Environmental Magnetic Noise Level Display

10 Adjustable audio tones with 10 volume levels (enabling Mute Operation) Adjustable Alarm Duration

IR Protection Feature enabling perfect low false alarm operation/ Continuous Detection Mode Selection Enabled

IP 44 (Optional IP 65) Protection Level (EN 60529).

Optionally the IP level can be increased to IP65.

Five Digit Incoming/ Outgoing & Alarm Counters (Visible/Invisible)

Interference free Operation from other Electronic Devices and Does Not react other Electronic Equipments.

Necessary altering precautions have been taken

Four-digit changeable digital Pin Code and Mechanical Lock

Automatic Failure Display Function on GLCD with continuous self checking of key parameters (BITE - Built In test Equipment)

Reloading the factory default settings by one-touch button

Easy Programming and Display via High Resolution GLCD (Graphical Liquid Crystal Display)

5 Menu Languages, Standard menu in English, German, Spanish, Turkish and Arabic
