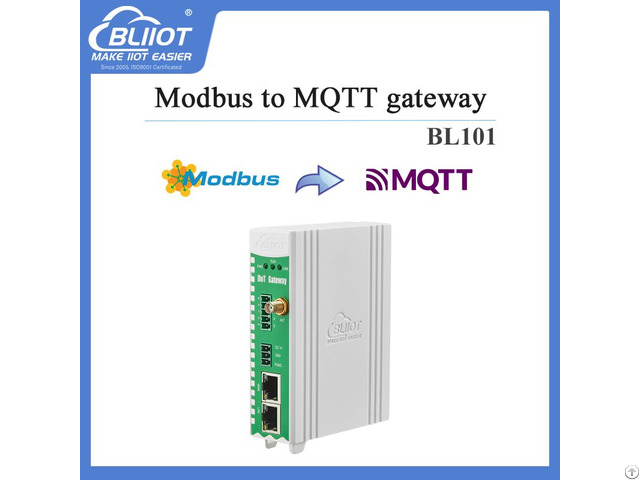

Modbus To Mqtt Industrial Iot Gateway - China

1.1Overview

BL10 series Industrial IoT Gateways performs as industrial protocol converters, the industrial protocol conversion gateways allow for Ethernet ports, Serial ports, 4G, WiFi connections and can convert between various industrial protocols.

2 - Features

Downlink supports: Various PLC protocols, Modbus RTU Master, Modbus TCP Master, etc.

Uplink supports: Modbus RTU, Modbus TCP, MQTT, OPC UA, AWS, ThingsBoard, Sparkplug B, HUAWEI IoT, Alibaba IoT, BLIIOT Cloud, etc.

DC 9-36V power supply with terminal wiring.

Power input with reverse wiring prevention protection.

2CH or 6CH RS485/RS232.

Serial port baud rate supports 2400bps-115200bps; Stop bit supports 1, 2; Data bit supports 7, 8; Parity bit supports None, Odd, Even.

2 RJ45 Ethernet ports, 1WAN+1LAN.

Data of equipment connected to LAN, WAN or cascade switch can be collected.

It comes with link and data indicators.

Built-in isolation transformer for up to 2KV electromagnetic insulation.

Support TSL\SSL data encryption for security.

Support routing function.

When connecting to the external network, it will prioritize wired Internet access and switch to 4G network when there is no wired network.

Supports OpenVPN.

Support BLRMS for Remote configuration, remote firmware upgrade for easy remote maintenance.

Support sending configuration files remotely via MQTT to change the configuration.

Supports Modbus RTU to Modbus TCP, transparent transmission.

Use RESET button to restore factory settings (long press in power-on state until RUN indicator goes out).

Support hardware and software watchdogs.

Support scheduled restart.

Plastic housing, IP30 protection.

Dimension 30mmx83mmx110mm(Models with 2CH serial ports), 40mmx83mmx110mm(Models with 6CH serial ports).

DIN rail mounting or wall mounting.
