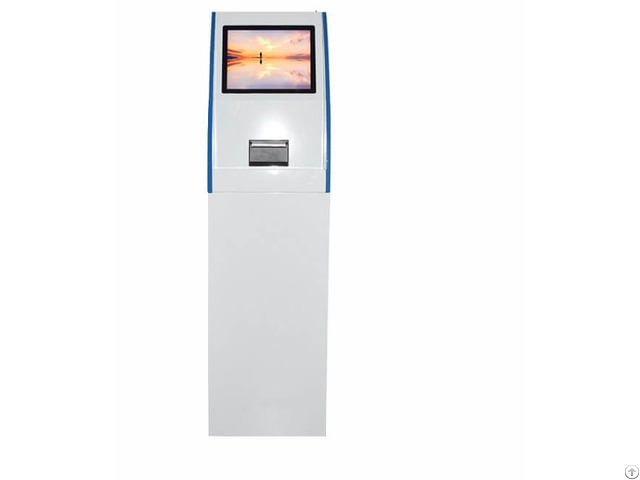

Hf Kt02 15 Inch Kiosk Pos Terminal Touchscreen Self Service Odm Support - China

1.15 inch touch screen

2 - Android 7.1 System

3 - Thermal Receipt Printer: 80mm width, high speed

4 - SIM Card Dispenser: Cards support: 86L * 55W mm (0.2~1.2mm thickness)

5 - UPS: Support PC working in standby model for 6 - 10 minutes

Components Model No Detailed Discription

Android parts RK3288 Motherboard: QUAD CORE

CPU：RK3288

RAM：4GB

Memory: 32GB

System: Android 7.1

RJ45, WLAN, Bluetooth

Monitor 15" LCD Brightness: 300lumens/m2

Contrast: 1000: 1

Response Time: 5ms；Dot pitch: 0.297；

Max.

resolution: 1024*768

Touch Screen 15"PCAP High Transparence, high precision and

durability

antirust, anti-acid, anti-dust

Thickness: 3mm, Max: 4096×4096

Surface Hardness: Mohs' hardness rating of 7

Force<100G; Response Time: 10ms

Passport-sized MRZscanner Read ICAO 9303 compliant & non-ICAO

compliant documents;

Obtain digital data from contactless chips (RFID);

Capture images in white, IR & UV illumination;

Combine with high accuracy OCR SDK;

Provide customization OCR service.

EMV Card reader Magnetic card (Read Only) ISO-7811

Finger Printer UART communication port

Achieving fingerprint enrollment and verification at the condition of minimum storage

Optical total reflection fingerprint sensor

1: N verification and 1: 1 identification function

Self-learning function of the fingerprint features

Able to collect fingerprint and upload its features so as to achieve

matching function with current fingerprint

Able to set baud rate and equipment Number

Access to standby situation by instruction control module

Thermal Receipt Printer 80mm width, high speed.

SIM card dispenser Cards supported: 86L x 55W mm(0.2~1.2mm thickness)

UPS Support PC working in standby model for 6 - 10 minutes

Enclosure( Customize option)|(outdoor environments) IP65, Durable steel frame, Power coated;

Slim and smart design;

Easy to install and operate;

Moistureproof, Antirust, Anti-acid, Anti-dust, Static free

Logo and color upon request.

Working humidity 5% to 95%

Storage humidity 10%~90%(noncondense)

Temperature Control System Intelligent fans cooling / Air Conditioner optional

Power Supply AC 110V-240V, 50HZ/60HZ

O.

S Software support Standard Android SDK

Working humidity Optional Microsoft Windows 7 (Trial version)

all hardware drivers and SDK are available or linux.

Packing Bubble Foam, Carton, Wooden Case

Remarks Delivery: 40 days upon receipt of payment

Warranty: 1 year
