Electric Floor Heating Sheet - China

price: 9.00 Dollar US$

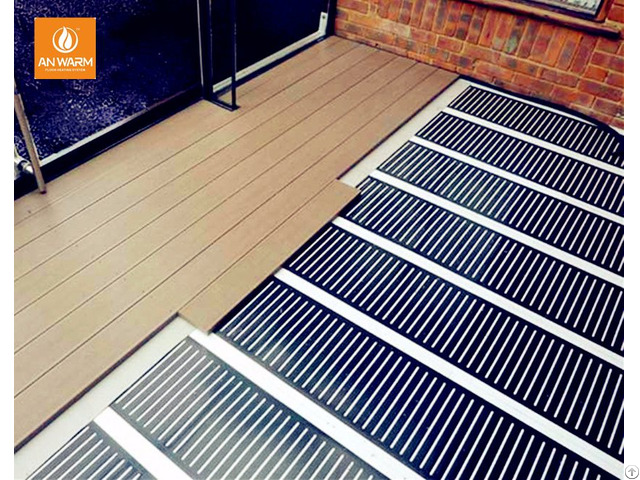

An Warm floor heating system: Floor warming system, low surface temperature, with self-regulation, to be run on 24 Volt.

The system consists of the following parts: An Warm Floor Heating Element: 1.2 mm thickness and 340 mm wide to be cut to desired length.

Polyethylene carbon enriched with copper braid embedded in both sides for current connection.

Resistance changes with temperature self- regulating (PTC).

Supplied with self-adhesive underside along edges.

Can also be supplied with full adhesive underside.

Specification

Model AN Warm

Heating element type 0-36V

Color Carbon Black

Output Positive Temperature Coefficient (PTC) semi-conductor polymer Width 13-3/8 inches (340 mm) Length Cut to order Maximum Element Length 98-1/2 feet (30m) Weight 0.28lb/ft (0.42 kg/m) Thickness 3/64-inch (1.2 mm) Output Wattage (24-36VDC) 50w/m@68°F (20°C) 55w/m@86°F (30°C) Nominal Resistance 74Ω/ ft(23Ω/m)@68℉(20℃)

Primary Draw on 230V 0.18 amps/m

Company Contact:

Posted By: Beijing Shilihe Company

Phone: +8615737319187

Address: Haidian district zaojunmiaojia 16, Beijing , China

Email:

Published date: December 2, 2017

Business Description: We are specialized in floor heating system, we can provide the whole system, including heating mats, thermostat (temperature controller, manual control and remote control), transformer (up to 5, 000 W), cables, insulation board, and other installation accessories.

We are original manufacturer for An Warm underfloor heating product, equipped with R&D center for product development.

Our product has been used in Norway.

Sweden for 37 years, and in the U.

S for 12 years.
