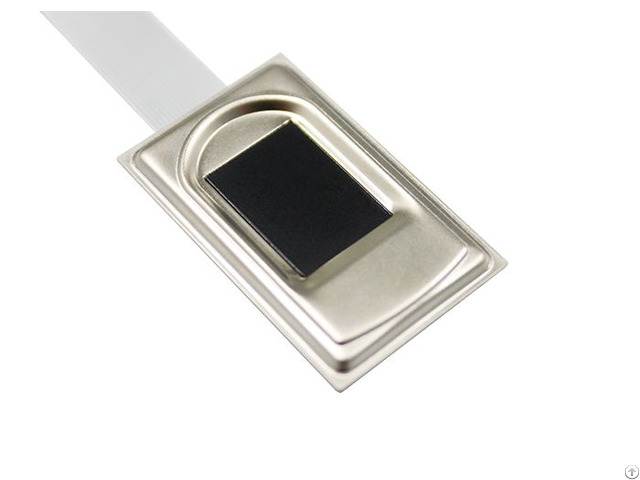

Miaxis SM-62UT Capacitive Fingerprint Module Fingerprint Authentication Modules Biometric OEM Module

OVERVIEW:

Miaxis SM-62UT is a standalone Capacitive Fingerprint Module, consisting of semi-conductor fingerprint sensor, low power consumption & high-performance ARM core processor and FLASH etc chips.

The module supports on-board fingerprint image processing, template extraction, fingerprint matching (including 1: 1 and 1: N), template storage and other functions.

FEATURES:

• 508 dpi resolution

• 1: 500 identification time < 1sec

• Live finger detection

• Power control function for for embedded applications to turn-on/off module

• Touch wake-up function

custom Biometric scanner SPECIFICATION:

Specification SM-62UT

CPU 108MHz, Cortex-M4

Flash memory 512KB

(Expandable up to 4MB)

Board Size(L x W x H) 35.0× 30.0× 7.5mm

Sensor Size(L x W x H) 33.4 x 20.4 x 3.6mm

Sensor type Capacitive

Active platen area 9.6 x 12.8mm

Image Size 192*256 pixel

Image resolution 508dpi

Grey scale 8 bit (256 levels)

Power-on time ≤200ms

Enrollment time

(Finger touch to template) ≤200ms

1: 1 Verification time* ≤200ms

1: N Matching time <1s, N=500

FAR ≤0 - 001 %

FRR ≤1.5 %

Template size 810 bytes default

Fingerprint capacity 500 templates

(3, 000 at 4MB)

Live finger detection Yes

ESD immunity ±8kV contact discharge

±15kV air discharge

Supply voltage DC 4.3V-7.0V

Supply current ≤100mA

Supply current Sleep mode ≤10uA

Communication interface UART

Operating Temperature -20°C to +60°C

Storage Temperature -30°C to +75°C

Operating humidity 20%RH～90%RH

Note: the 1: 1 verification time* is calculated based the time of input template matched to the stored template.
