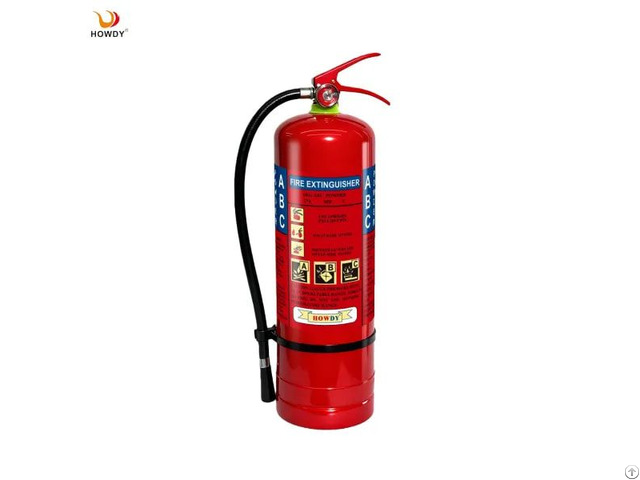

Abc Dry Powder Fire Extinguisher - China

1 - What is an ABC Fire Extinguisher?

An ABC fire extinguisher is a device that uses a dry chemical powder to put out fires.

The "ABC" classification means it is rated to combat three different classes of fire:

· Class A: Fires involving ordinary combustibles like wood, paper, cloth, rubber, and many plastics.

· Class B: Fires involving flammable or combustible liquids, such as gasoline, oil, grease, tar, oil-based paint, and lacquer.

· Class C: Fires involving energized electrical equipment, like appliances, wiring, circuit breakers, and outlets.

The multipurpose nature of this extinguisher makes it an excellent all-round choice for general fire risks.

2 - How It Works (Mechanism of Action)

ABC fire extinguishers work through two primary mechanisms:

· Chemical Interruption (For Class A fires): The monoammonium phosphate powder, when heated, forms a molten coating.

This coating smothers the fuel and breaks the "chain reaction" of fire by inhibiting the chemical processes occurring in the flames.

· Smothering (For Class B and C fires): The powder is expelled as a cloud that blankets the burning material.

This creates a barrier between the fuel and the oxygen in the air, effectively smothering the fire.

For electrical fires, the powder is non-conductive, which helps prevent electrical shock to the user while extinguishing the fire.

3 - Key Components

A standard ABC fire extinguisher consists of several key parts:

· Cylinder: The robust metal body that holds the expelling agent and the dry chemical.

· Propellant: A non-flammable gas (usually nitrogen) stored inside the cylinder under pressure.

This gas provides the force to expel the powder.

· Dry Chemical Agent: The primary extinguishing material is typically monoammonium phosphate.

This fine, yellow powder is effective on all three fire classes (A, B, and C).

· Handle and Carry Lever: Used to carry and operate the extinguisher.

Squeezing the lever discharges the agent.

· Pressure Gauge: Indicates whether the extinguisher is fully charged and ready for use.

The needle should be in the "green" zone.

· Pull Pin: A safety seal that prevents accidental discharge.

It must be removed before operation.

· Discharge Hose or Nozzle: A flexible hose or hard horn that directs the stream of dry chemical at the base of the fire.

4 - Advantages and Disadvantages

Advantages:

· Versatility: Effective on Class A, B, and C fires, making it ideal for areas with mixed fire hazards.

· High Effectiveness: Rapidly knocks down flames, especially on flammable liquid and electrical fires.

· Wide Availability: Commonly available and relatively inexpensive.

· Non-conductive Powder: Safe for use on energized electrical equipment.

Disadvantages:

· Messy Residue: The powder is very fine, corrosive, and difficult to clean up.

It can damage sensitive electronics, machinery, and upholstery.

· Visibility Hazard: The powder creates a thick cloud that significantly reduces visibility during use.

· Breathing Hazard: The cloud can be an inhalation irritant and should not be used in confined spaces without proper ventilation.

· Limited Post-Fire Security: On deep-seated Class A fires (e.g., smoldering mattresses), the powder may not fully penetrate, and the fire can re-ignite.

5 - How to Use (The P.A.S.S. Technique)

To operate a fire extinguisher correctly, remember the acronym P.A.S.

S:

1 - PULL the pin to break the seal.

2 - AIM the nozzle or hose at the base of the fire.

3 - SQUEEZE the lever slowly and evenly to discharge the agent.

4 - SWEEP the nozzle from side to side, covering the base of the fire until it is out.

6 - Common Applications

ABC dry chemical extinguishers are suitable for a variety of settings, including:

· Homes: Garages, kitchens (with caution for grease fires near stoves), and workshops.

· Commercial Buildings: Offices, hallways, and utility rooms.

· Industrial Sites: Warehouses, manufacturing facilities, and vehicle service areas.

· Vehicles: Service trucks, boats, and RVs.

HOWDY

Certifications&Sta ndards: ISO9001: 2015 CE* Single unit packaging: Corrugated cardboard box with foam for securing

* Bulk packaging: Palletized, suitable for sea freight

* Lead time: 15-45 days

* Ports: Ningbo / Shanghai / Yiwu

* Available capacities: 1kg, 2kg, 4kg, 6kg, 9kg, 12kg/customizable

* OEM/ODM services available (logo printing, custom labels, multi-language instructions)

* Samples: Free samples available Dry Powder Fire Extinguishers are essential safety equipment designed to tackle a wide range of fire hazards.

Ideal for residential, commercial, industrial, and automotive applications, these extinguishers provide reliable protection against Class A (combustible solids), Class B (flammable liquids), and Class C (electrical) fires.
