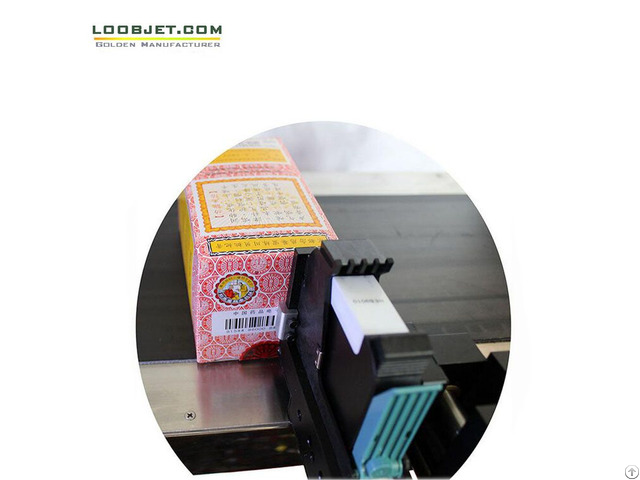

Packaging Box Tij Date Coding Printer - China

Hardware technology details

1 - Size of the controller: 415 mm * 415 mm * 90 mm

2 - The largest print Height: A single Controller is maximum of 50.8 mm(with four print heads), If six joint maximum is 304.8 mm(with 24 pics print heads)

3 - The weight: 6 kgs

4 - Interface: A serial port, Ethernet front-end ports, magic eye, encoder interface, print nozzle interface.

5 - Spray printing precision and the corresponding print speed:

60 m/min (600 x 600 dpi)

90 m/min(600 x 300 dpi)

120 m/min (600 x 200 dpi)

150 m/min (600 x 150 dpi)

6 - Ink system

Ink cartridge, ink bag, ink system

7 - The sensor

Support multiple external sensors (NPN, contact type)

8 - Synchronizer

300 ppi synchronizer

9 - The power supply requirements

Single phase, 110-120 vac 50/60 hz 3.2 A

Single phase, 220-240 vac 50/60 hz 1.6 A

10 - The work environment

Temperature 0 ℃ to 40 ℃, humidity 10% ~ 80%

11 - Storage environment

Temperature 15 ℃ ~ 85 ℃, humidity 5% ~ 95%, no condensation environment.

12 - Software technology parameters The operating system

X Windows, Windows 7, Windows 8 (pro)

Support the Dynamic text, counters, date, dynamic bar code, static text, pictures, (dynamic bitmap, need to customize)

Support Bar code type

1d: EAN128, Code25, Code39, Code93, Code128, GS1Databar various one dimensional code;

2 d: PDF417, Data Matrix, Maxi Code, the QR Code and QR Code.
