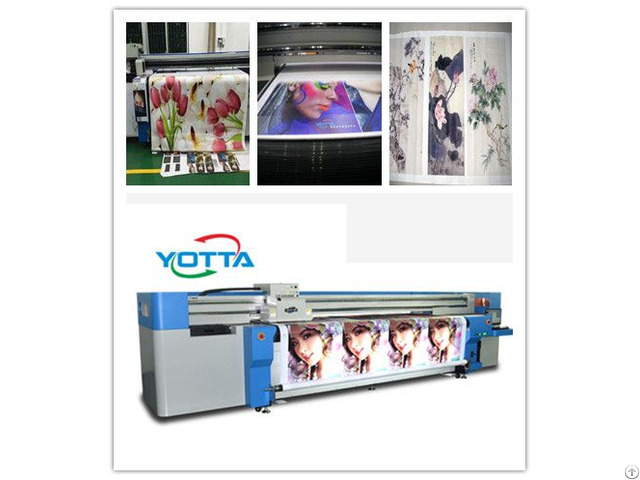

High Resolution Eco Outdoor Advertising Printer - China

Printer model YD3200-RC

Print head Ricoh-Gen5

Number of nozzles 3-8 pcs

Power 8.5 KW (38A)

Print width 3.2 m

Print materials Rigid materials and Flexiable materials

Print thickness Max 50 mm

Suitable mediums Rigid materials: glass, acrylic, leather, wood, metal sheet, PVC board, Corrugated board, reflective film, corrugated board

Flexible materials : ( wallpaper, advertising cloth, car sticker, etc.

)

Printing speed

4pass Single row 38 ㎡/h；double row 76㎡/h

6pass Single row 29 ㎡/h；double row 58㎡/h

8pass Single row 22 ㎡/h；double row 44㎡/h

Ink color C, M, Y, K, Lc, Lm (optional)

Ink type Environmental UV curing ink(No VOC)

Special ink UV white ink

Input format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI

Printer weight 1550KG

Printer Dimension 5.8m[L] × 1.7m[W] × 1.6m [H]

Environment requirement Independent, clean, low dust, low light, well-ventilated workplace environment temperature: 18℃~ 30℃ (64℉~ 86℉) Relative Humidity: 30% to 70% (non-condensing) Ventilation: Recommended use overhead exhaust fan, exhaust the amount of 600 cfm

YD3200-RC Hybrid Printer adopts imported original grey level Ricoh G5 internal heating industrial printhead, the number of printhead can be increased or decreased according to your requirements, the print speed can up to 38㎡/h (4 PASS), Can meet the demands of large quantities production capacity, Specially design a high-speed and high - precision UV printer for medium and small size processing enterprises and can meet their high precision and high speed production requirements.



Application fields

Rigid materials: glass, acrylic, leather, wood, metal plate, pvc board, waved plate, corrugated sheet, reflective film etc.

Flexible materials: wallpaper, advertising paper, car sticker etc.

1 - About the price and quality?

We can not say we are the best supplier, but we are honesty for our quality and price.

Good quality is our first rule, and good service is our mission.

We produce machines as 5S management rules, and ISO standard.

2 - Why do you choose our factory?

We produce flatbed printing machine, digital flatbed printer is a new product in printing industry, it can

print on the surface for various kinds of flat objects directly, such as crystal, leather, glass, metal, ceramic

tile, PVC, PP, PE and so on.

Any pictures can be printed on the surface of the subjects by the printer with

high resolution, it is the fastest flatbed printer on the current market.

And we will keep you with a best

service, give us a chance, also give your a chance to know this field if you really want to know this printer.

3 - What is the printer operation?

a.

Through a digital camera or scanner to get File sources of pictures.

b.

Through the computer images to typesetting modified document layout.

c.

Through the universal printer output files to print.

d.

Print objects requirements.

Company Contact:

• Posted By: Shenzhen Yueda Printing Technology Co.,Ltd.

• Phone: 13925227012

• Address: Gangbei Industrial Park,Baohe Road,Longgang District,Shenzhen, shenzhen , China

• Email:

• Website: http://www.yo-da.com

• Business Description: We specialize in manufacturing UV different types and sizes of flatbed printers.

  Our printers can print any pictures on any flat materials with embossment and 3d effect.

  They are widely used in advertising, decoration and other industries.
