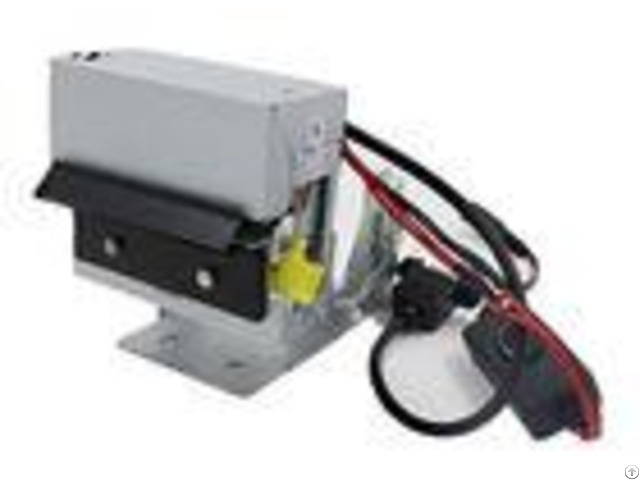

Automatic Cutting Desktop Mobile Thermal Printer Panel Mounted Structure - China

Automatic Cutting Desktop Mobile Thermal Printer Panel Mounted Structure Quickdetail: Panel mounted structure Big paper holding unit Ultra high speed max200 mm/s Full /partial cutting mode (by adjustable) Farsi/hebrew font support Automatic Cutting With Bulit-in RS232 USB Interface brand name seiko mechanism CAPD247 Description: MS-D247(a)belongs to newest 58mm kiosk thermal printer which is widely used for gas station kiosk and queue management system.

it takes use of brand name seiko mechanism CAPD247 Specification: - - - - mechanism: | CAPD247 | Printing method | Thermal dot line printing | Dots/line | 432 dots/line | Dot pitch | 8 dot/mm | Paper width | 58 mm | Printing width | 54 mm | Paper thickness | 54~78 um | Printing speed | 200 mm/s | Paper feed direction | 180 horizontal | Sensors | Head temperature | Thermistor | Paper press shaft | Mechanical switch | Paper end | Photo interrupter | Paper loading | Easy loading | Font size | ASCII: 9*17;12*24; Chinese: 24*24 | Power supply | Logic circuit | 2.7~3.6 V | Motor | 21.6 ~26.4 V | Dimension (L*W*H) | 117.85*103.5*93 mm | Weight | Approx 1.27 kg | Reliability | Circuit: over 1, 000, 000, 000 pulses Cutter: over 7, 000, 000 cuts Thermal head: over 100 km MCBF: 37, 000, 000 lines | Ambient environment | Work temperature | -10 ~50 | Work humidity | 20~85% RH | Storage temperature | -25~70 | Storage temperature | 10~90% RH | - - - - - - - - Controlling board: | | Interface | RS-232 /USB | power supply | DC 24V/3A | Command set | ESC/POS | Barcode | supported | Firmware location | 2 M NV Flash memory | Buffer | 4 KB | SRAM | 20 KB | Driver | USB driver | System | WindowsXP/Win7(32bits or 64 bits)/ Win8/Android OS | Accessories: | paper near end sensor; | Paper holding unit; | Paper bezel (paper guide mouth) | Interface connector | Power supply unit | Cable | - - - - Applications: kiosks, bank call distributor, parking management system, payment machine, gas station, coupon machine, lottery device, ATM, self-service terminal, ID automation, attendance machine and more Competitive Advantage: Customization offer Prompt delivery Low cost Small order accepted Brand-name printer parts Android system support Thank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
