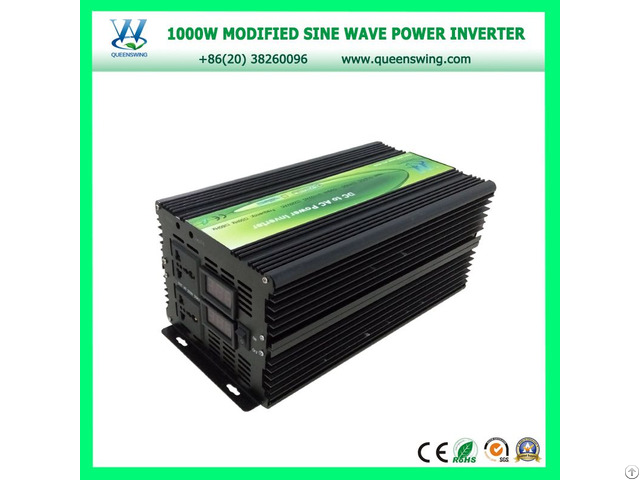

Off Grid 1000W High Frequency Solar Power Inverters (QW-M1000)

1 - Introduction:

QW-M1000 is modified sine wave inverter which converts DC power to AC power for household appliances, solar devices and telecommunication equipments when there is no grid power.

To prevent damages to this inverter, soft start and safe working performance such as short circuit protection are added into its standard design.

The cool shell and inner fan also help improve its performance.

2 - Feature:

1 - Stable working performance: Even in the situation of under voltage or over voltage, the inverter could endure 10% voltage fluctuation until it shutdowns;

2 - Full load temperature <50 degree: Cool surface design and load controlled fan help lower the temperature of inverter and prolong its span;

3 - High efficiency: World-leading and always>95%;

5 - Low interference: Using advanced technology to avoid interference from precision instruments;

4 - Technical Parameter:

Input: Input voltage: DC12V/DC24V/DC48V

Working Voltage: DC10V-15V/DC20V-30V/DC40V -60V

Input current: 83A/41.67A/20.83A

Standby input power: <15W

Start no load current: <0.5A

Output: Rated power: 1000W

Peak power: 2000W

Efficiency: >85%

Output voltage: AC110V/220V+/-5%

Output frequency: 50/60Hz+/-1%

Output current: 9A/4.5A

Output waveform: Modified Sine Wave

Protection: Reverse connection protection: fuses burne

Low input voltage alarm: 10.1V+/-0.3V; 20.5V+/-0.3V; 42V+/-1V

Low input voltage protection: 10.7+/-0.3V; 20.1+/-0.3V; 40+/-2V

High Input voltage protecton: 15V+/-1V; 30V+/-1V; 60V+/-2V

High temperature protection: ≥70ºC

Over load protection: >1200W

Short circuit protection

Digital display Indicator:

Inverter woking: green light on

Inverter problem: no 110V/220v display

Protection alarm:

Low input voltage alarm: buzzer

Low input voltage protection: no display, buzzer and inverter stop working

High input voltage protection: no output voltage display, have input display, inverter stop working.

Over load protection: voltage drop to 55-140V

Abnormal temperature: no AC display, buzzer and stop working.

Environment: High temperature protectioin: ≥70ºC

Working Temperature: -10ºC~40ºC

Cooling mode: Intelligent Temperature control Fan

Package included: 1* QW-M1000 (280*170*135mm/6kg)

1* battery clamp

1* spare part

1* english user manual

1* standard packing box

5 - All protection:

1: High voltage protection

2: Low voltage protection

3: Over load protection

4: Over temperatuer protection

5: Overcurrent protection

6: Output short-circuit protection

7 - Reverse connection protection

8 - Internal fuse protection

9 - Buzzer alarm function

6 - Application:

Wind generation, solar panel, home, office, car, board and some place that lack electricity.

Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!
