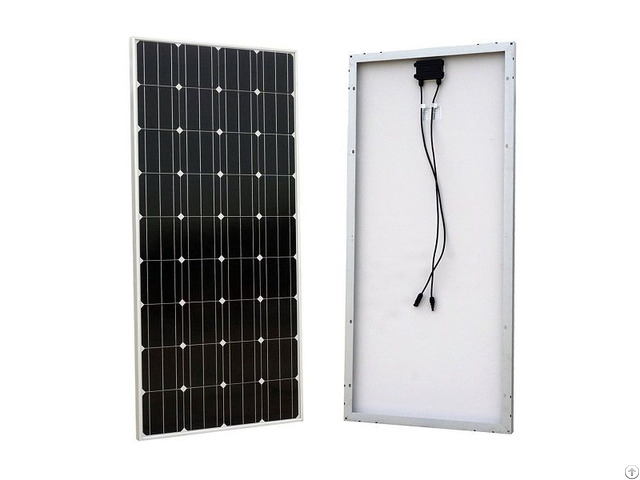

Eco Sources 160w 12v Monocrystalline Solar Panel - China

The Eco-Sources 160W 12V monocrystalline solar panel is a key component to any solar power (PV) system.

Each solar panel includes MC4 leads that extend from the junction box, which is affixed to the back of each panel.

The MC4 leads are compatible with the Eco-Sources MC4 Adaptor Kit, allowing for quick and simple connection.

Whether camping in the mountains or taking a trip to the beach, this off-grid panel can be a great start to any Eco-Sources off-grid system.

Features

The basic component of the solar panel system, caravan, RV, boat, Greenhouse solar panel system.

Easy Installation with the pre-drilled hole.

Each solar panel comes with a 90cm 12awg cable with MC4 Male/Female quick connectors.

By-Pass Diode minimized the impact of shade.

Waterproof IP-65 Rated Junction Box: Advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets).

Resistance to Salt Corrosion and Humidity.

Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced Safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).

Specification

Rated power 160W

Voc 22.41V

Vop 17.9V

Short circuit current (Isc) 9.87A

Working current (Iop) 8.89A

Output Tolerance ±3%

Temperate coefficient of Isc (010+/- 0.01 )%/ ℃

Temperate coefficient of Voc – (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃to +80℃

Frame Heavy duty aluminum

SLA Battery Voltage 12V

Dimensions (L x W x H)mm SIZE 1 : 665*1450*35mm (26.3*57.3*1.38 in)

Dimensions (L x W x H)mm SIZE 2 : 730* 1515*65 mm( 28.7*59.6*2.55in)

Weight 28.7lbs(13KG)

Warranty 25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty

Application

Eco-Sources rigid 160w mono solar panel is widely used on solar system, caravan, RV, Boat, greenhouse, solar pump watering system.
