600w Mppt Waterproof Grid Tie Inverter Dc 24v 110v - China

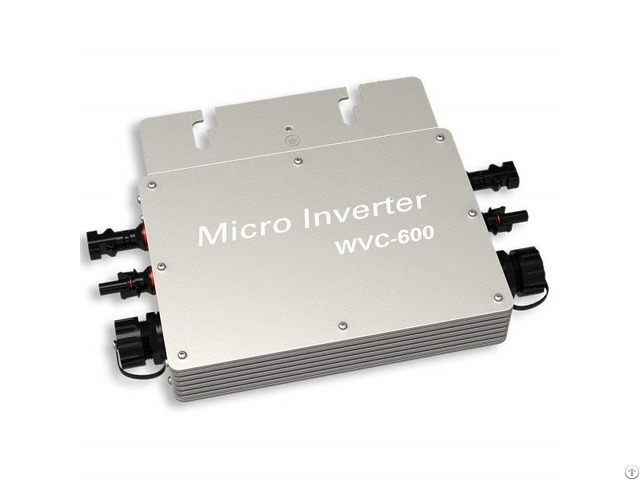

The Eco-Sources WVC-600W grid tie micro inverter using IP65 waterproof streamline design which can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking (MPPT) Function, Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight.

Features

Brand New IP65 waterproof model, pure sine wave output, reverse your power meter cut your bill.

Work with the solar system, built-in high-performance Maximum Power Point Tracking(MPPT)function, more efficiency.

Unique circuit design, higher efficiency, more stable.

High-frequency isolation transformer, high security.

Perfect electrical protection function, AC electric power transmission using the reverse transmission technology

Remarks: LED flashing in the process of being the working condition: inverters connected to AC & DC sides→Red LED light 3s→working condition.

Specification

Models: WVC600W 110V Recommend use PV panels: 600W / Vmp>34V / Voc<50V

DC MAX input: current 40A

AC MAX output: power 600Watt

DC MAX Open-circuit input-voltage: 50VDC

DC input voltage range: 22~50VDC

MAX output power factor: 0.99

DC input Reverse voltage protection: FUSE

AC output voltage range: 80V-160V

AC frequency range: 49.3-50.5 Hz

THDIAC: <5%

AC Phase: <0.5%

Islanding protection: VAC

Output short circuit protection: Current-limiting

Led Display: Refer to “LED Display”

Communication power line carrier-current communication

Standby Power: <1W

Night Power: <1W

Ambient temperature range: -40 ℃~65℃

Humidity: 0~100%

Waterproof class: IP65

Network test: DIN VDE 1026 UL1741

Certificate: CEC Notes:

Please connect the inverter following the operation instruction show above.

If have any question please contact relative persons.

Non-professionals do not disassemble.

Only qualified personnel may repair this product.

Please install the inverter in the low humidity and well-ventilated place to avoid the inverter over-heating, and clear around the inflammable and explosive materials.

When using this product, avoid children touching, playing, to avoid electric shock.

Connected solar panels DC input DC power supply cable.
