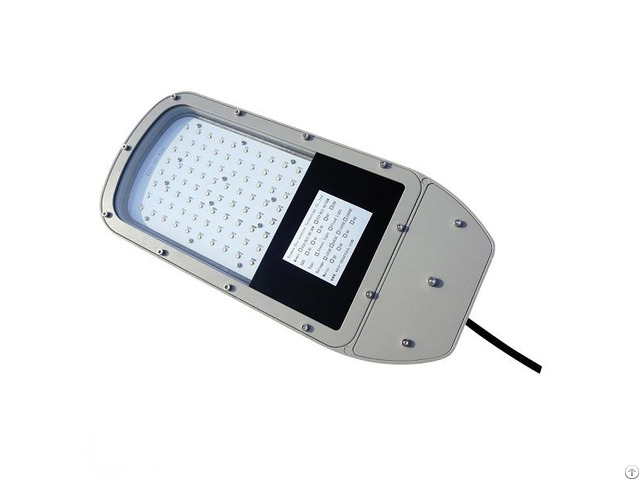

40w Solar Street Light System Sharp Led Chips For Outdoor Lighting - China

Eco-Sources solar street lights use premium LED light fixtures as lighting sources producing an excellent and steady source of light while reducing electrical needs.

LED lighting is proven scientifically to be more illuminating than the standard HPS lamp and also has the added effect of dividing the light evenly within an area.

Features

The Beam Pattern is rectangular (rectangle), good illumination uniformity, the brightness difference is very little between the spot of center and periphery.

Almost no difference in the direction of extending the road completely with the continuous extension of the road, it is the ideal lighting lamps for road lighting.

Optional accessory by solar power (not included)

1 - Charger controller (included as standard accessory) Refer to Charger controller in our part NO.

ICO-SC-L-20A With timer, 4hrs, 2 - solar panel (optional) Solar panel size depends on the installation position and sunlight time per day Such as California sunlight hours 5hrs per day .

3 - Battery Lead acid, deep cycle, gel battery-free maintenance recommended

4 - Battery box and cables

5 - Reference for solar accessory configuration Physical Specification

Lighting Span LED power 40W

LED quantity 80pcs *0.5w

LED lumen ( Tj = 25 °C ) 2400lm

LED driver efficiency > 92%

Color temperature 8000K

Color index Ra > 75

Operating temperature －30°C ～ 60°C

Humidity 10% ～ 90% RH

Lifespan > 50, 000 Hrs

Pole distance 12-18m

Lighting zone (height ＝8meters) 25 m * 10 m

LED driver voltage 12VDC

LED driver LED driver Constant current drive

LED housing Aluminum + tempered glass

LED Housing Size 425*19.3*70mm

Weight 2.2 KG

Waterproof class IP 65

Input voltage 12 VDC

AC/DC Adaptor Input voltage/frequency range AC110V/50HZ-60HZ

Total harmonic distortion <15%

Power factor >0.90

Power efficiency 88%
