40w Semi Flexible Monocrystalline Solar Panel - China

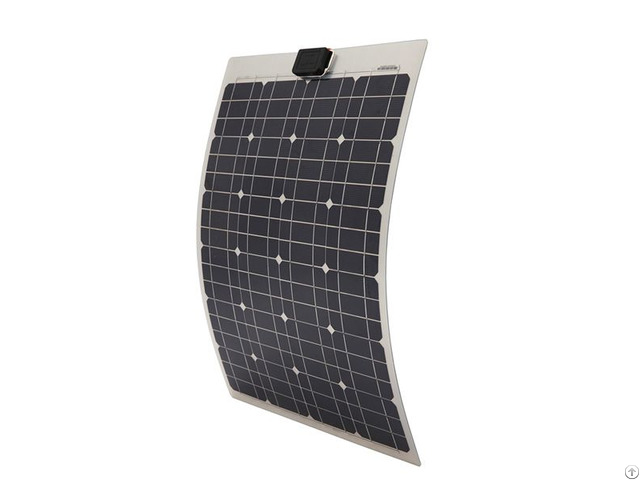

With its flexible design and 30-degree bend, the Eco-Sources 40W semi-flexible monocrystalline solar panel can be installed onto a variety of buildings and vehicles, including boats, caravans or motorhomes.

The flexible nature of this super thin panel makes it the ideal choice for fitting to curved surfaces.

Features

1 - Ideal for RV boat or tight spaces or crowded areas that are typically off limits for traditional glass and aluminum models.

2 - Suitable for marine use: the laminate coating on the exterior of the panel makes it impervious to saltwater splashing, rain, and other weather elements.

3 - Completely waterproof Junction box.

sealed and waterproof junction box and makes it waterproof.

4 - Light weight 82 % lighter than aluminum glass solar modules 5 - Durable surface is less than 1/8″ / 2.5mm thick 6 - Quick Connectors: 1.4 meters of flex fitted with S-S connectors for quick and easy setup 7 - 1-year material warranty Specification

Rated Power 40W

Vm(V) 18V

Im(A) 2.32A

Voc(V) 22V

Isc(A) 2.76A

Module Size (MM) 597*540*2.5 (23.6*21.3*1/8″ )

Number of cell 36

Cell Dimension (mm) 125

Maximum system voltage (V) 1000

Temperature coefficients of Isc (%) +0.1%/℃

Temperature coefficients of Voc (%) -0.38%/℃

Temperature coefficients of Pm (%) -0.47%/℃

Temperature coefficients of Im (%) +0.1%/℃

Temperature coefficients of Vm (%) -0.38%/℃

Temperature Range -40℃ —85℃

Junction Box Type PPO, black

Length of Cables (mm) 750

Cell Efficiency (%) ≥18.0%

Output tolerance (%) ± 3%

Backsheet Aluminum substrate

Encapsulation PET

Standard Test Conditions AM1.5 100MW/c㎡ 25℃

Net Weight 1.5kgs(3.3lbs)

Application

Eco-Sources semi-flexible solar panel is ideal for Boats/Sailboats, Yachts, Marine applications Motorhomes/RVs, Expedition Vehicles, Commercial Trucks/Trailers, Caravans/Popup Off-Grid and Remote Communication sites
