100w 12 Volt Monocrystalline High Efficiency Foldable Solar Panel Kit - China

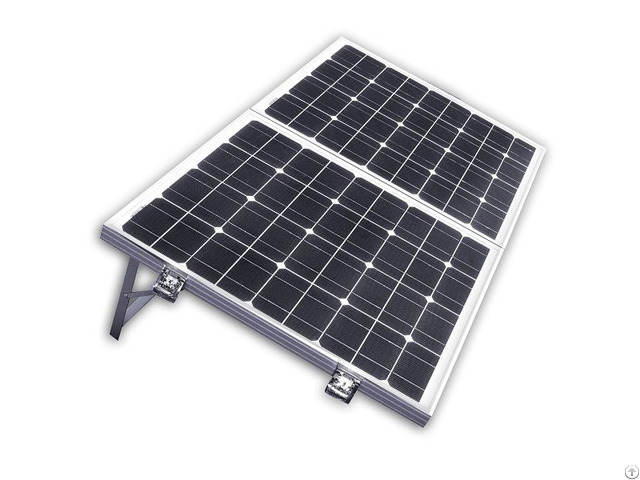

The Eco-Sources 100 Watt 12 Volt monocrystalline portable solar suitcase is an entire solar power system incorporated into a single, compact package.

This lightweight suitcase includes two 50 Watt monocrystalline solar panels, one water-proof solar controller with LED light indications, 12V/24V autumn detect, protect the battery, one 3m(default) or 5m cable with a positive and a negative alligator clamp for easy connection to the battery, and protective casing for safe portability.

Features

1 - Easy Operation: open up the folding solar panel, face the sun, battery clips allows for simple connection to the battery.

2 - Pre-installed controller and Pre-wired for 12V battery charging, you don’t have to add extra controller.

3 - With handle, convenient to carry.

4 - Waterproof IP-65 Rated Junction Box: Advanced water and dust proof level (complete protection against environmental particles and low-pressure water jets).

5 - Resistance to salt corrosion and humidity.

6 - Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa), Lightweight anodized aluminum frame and reinforced safety and anti-reflection coated glass 3.2mm thick (tempered + patterned).

Specification

Related power 100W

Vop 17.9V

Working current (Iop) 5.59A

Output Tolerance ±3%

Temperate coefficient of Isc (010+/- 0.01 )%/ ℃

Temperate coefficient of Voc – (0.38 +/-0.01 )%/ ℃

Temperate coefficient of power Voc -0.47%/℃

Temperature range -40℃ to +80℃

Frame and leg Heavy duty aluminum

SLA Battery Voltage 12V

Dimensions (L x W x H)mm 690*510*73mm(27.3*20.16*2 .

9in)

Weight (kgs) 11.9kgs(26.25lbs)

Application

These foldable solar panels are ideal for hiking, camping, and military use, off-grid solar panel system, caravan, RVs, boat, Greenhouse solar panel system, solar pump watering system etc.

Notes

1 - Unfold the solar panel, expose the solar panel to the south(inclination angle from 15-30 degree), 2 - Connect the appliance to the load terminal of the connector

3 - Connect the male weather pack connector with alligator clips to the female weather pack connector from the controller

4 - Clamp red and black alligator clips to positive and negative ends of the battery respectively.
