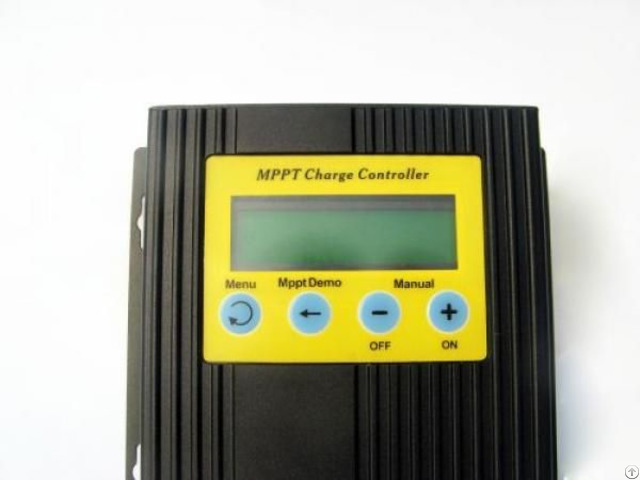

Eco Worthy 20a Mppt Solar Charge Controller 12v 24v - USA
price: 102.00 Dollar US$
Package Included
1PCS 20A MPPT charge controller
1PCS Manual USA, UK, Germany, Australia, China Stock Usually Ships in 3 to 5 Business Days ECO-WORTHY 20A MPPT Solar Charge Controller 12V/24V Maximum Power Point Tracking solar charge controllers (MPPT) are different than the traditional PWM solar charge controllers in that they are more efficient and in many cases more feature rich.
MPPT solar charge controllers allow your solar panels to operate at their optimum power output voltage, improving their performance by as much as 30%.
Traditional solar charge controllers reduce the efficiency of one part of your system in order to make it work with another.
High-speed MPPT High technology: MPPT with LCD display, efficiency > 99%, Employs a DC converting circuit, conversion efficiency > 96%
More selections for your need: Five output modes: Manual, Standard, Timer, Light sensor, Light sensor on + Timer off.
Advanced electronic protection: Over charge, over discharge, overload and short circuit protection
Tiny self-consumption (<15mA @12V / <25mA @24V)
3-stage charging algorithm, impulse, bulk and float
Power meter function: LCD display shows the battery voltage, charging current, charging power, output status
Built in timer, suitable for a periodic discharge system such as solar street lights, solar pumps etc
Fully Aluminium housing incorporating a large heat sink
1 Year Warranty
20A mppt controller Specifcation
Rated system voltage 12V/24V DC
Max open circuit voltage of solar panel 15-50V DC
Max output current 20A
Max discharge current 20A
Over discharge voltage 10.2-12.5V(+/- 0.2)
Restart voltage 10.2-13.5V(+/- 0.2)
Constant voltage (Over charge )voltage 13-15.5V(+/- 0.2)
Float voltage 12.5-14.5V(+/- 0.2)
Converter type Buck
Converter efficiency >96%
Max increase efficiency >43%
Tracking efficiency >98%
Precision of clock +/-50S/Month
Operating temperature -20 to +50 degree C
protect class IP22
Size 140mm*147mm*42mm(5.53*5.8 1*1.66In)
weight 550g(1.21lbs)
Company Contact:
- Posted By: Eco-Worthy Solar Technology Co. Ltd
- Phone: 1 415-376-0826
- Address: East 12th Street 752, Los Angeles, California , USA
- Email:
- Website: https://www.eco-worthy.com
Published date: November 6, 2018
- Business Description: ECO-WORTHY is a leading green energy company for the off-grid solar system.
We have continuously developed and innovated PV products for more than a decade, and help more than 500, 000 families set their own off-grid solar system.
