Arbitrary Waveform Generators Brief Introduction

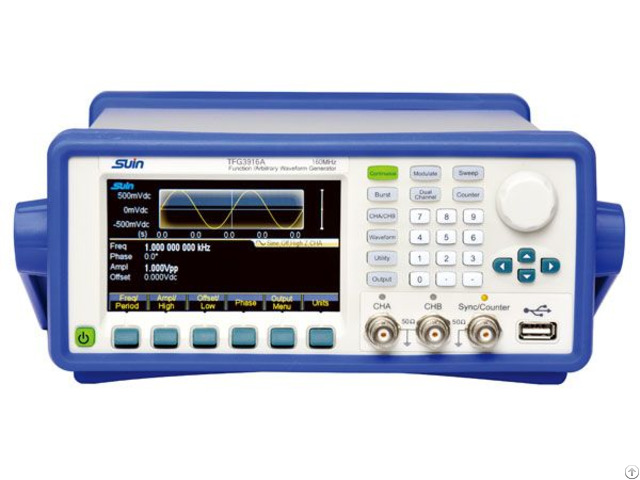

With Direct Digital Synthesis technique (DDS), large scale integrated circuits and soft-core embedded system (SOPC), high sampling rate 500MSa/s, TFG3900A series are of the excellent technical performances and powerful function characteristics which are necessary for the fast measurement.

TFT-LCD interface can show the illustration of output waveform and parameters.

Keypads and knob are convenient for operation.

FEATURES

Dual channels outputs with identical resolution

500 MSa/s sampling rate, 14 bits vertical resolution

2ppm high accuracy to ensure the high quality waveforms

6 standard waveforms, 150 arbitrary waveforms

Full and complete modulation functions

Build in 350MHz frequency counter

Arbitrary Waveform Edit PC Software

Standard interface: USB Host, USB Device and LAN

4.3’High resolution TFT LCD display Arbitrary Waveform Generators SPECIFICATIONS TFG3908A TFG3912A TFG3916A

Frequency

Range Sine 1μHz ~ 80MHz 1μHz ~ 120MHz 1μHz ~ 160MHz Square, Pulse 1μHz ~ 30MHz 1μHz ~ 40MHz 1μHz ~ 50MHz Arbitrary 1μHz ~ 30MHz Ramp 1μHz ~ 5MHz

Resolution 1μHz, 12 digits

Accuracy ±2ppm+1μHz

Waveform

Standard Waveforms sine, square, ramp, pulse, noise, DC

Arbitrary Waveforms 137 kinds of waveforms including PRBS, Exponential Rise, Exponential Fall, Logarithm, Tangent, sinc, Semi-Circle, Gaussian, Cardiac, and so on

Sine Wave Spectrum Purity

Harmonic Distortion ≤－60dBc(＜10MHz) ≤－55dBc(＜80MHz) ≤－50dBc(＜100MHz) ≤－45dBc(≥100MHz)


Total Distortion ≤0.1% (20Hz ~ 20kHz, 20Vpp)

Square, Pulse and Ramp

Square Edge Time ≤8ns Overshoot ≤ 5 % Duty Cycle 0.1% ~ 99.9% mini.

pos/neg pulse width 10ns)

Pulse Edge Time 4ns ~ 100μs Pulse Width 10ns ~ 1000s

Ramp Symmetry 0.0% ~ 100.0%

Arbitrary Waveforms

Arbitrary Length 6-1M points Sampling Rate 500 MSa/s Vertical Resolution 14 bits

Amplitude

Range Frequency≤40MHz 2mVpp ~ 20Vpp(open circuit), 1mVpp ~ 10Vpp(50Ω load) Frequency≤80MHz 2mVpp ~ 10Vpp(open circuit), 1mVpp ~ 5Vpp(50Ω load) Frequency≤120MHz 2mVpp ~ 5Vpp(open circuit), 1mVpp ~ 2.5Vpp(50Ω load) Frequency≤120MHz 2mVpp ~ 4Vpp(open circuit), 1mVpp ~ 2Vpp(50Ω load)

Resolution 0.1mVpp ~ 2mVpp

Accuracy ±(setting value×1%＋2mVpp)

Flatness ±0.2dBm, frequency＜80MHz

(sine, relative to 1MHz) ±0.3dBm, frequency≥80MHz

Offset

Range ±5Vpk(50Ω load)

Resolution 0.1mVdc ~ 2mVdc

Accuracy ±(setting value×1%＋2mV＋0.5% of amplitude)

Modulation Output(CHA, CHB)

FM, AM, Modulation Frequency 1mHz ~ 100kHz

PM, PWM, AM Modulating Depth 0% ~ 120%

SUM Modulation Phase Deviation 0° ~ 360° Pulse Width Deviation 0% ~ 99% Sum Amplitude 0% ~ 100% Source internal, external

FSK, 3FSK, 4FSK Hope Frequency 1μHz ~ maximum frequency Hope Rate 1mHz ~ 1MHz Trigger Source internal, external (only FSK, 4FSK)

Sweep Output(CHA, CHB)

Frequency sweep Sweep Time 1ms ~ 500s Reture/Hold Time 0 ~ 500s Sweep Type Linearity, logarithm

List sweep Duration Time 1ms ~ 500s Retention Time 0s ~ 500s

Burst Output(CHA, CHB)

Waveform sine, square, sawtooth and so on

Burst Period 1μs ~ 500s

Burst Count 1 ~ 1000000

Start/End Phase 0° ~ 360°

Trigger Source internal, external, manual

Channel Coupling

Frequency Coupling Frequency Ratio, Frequency Difference

Ampliitude Offset Coupling Amplitude Difference, Offset Difference

Waveform Coupling Comination Amplitude, 0% ~ 100%

SYNC

Waveform Characteristics square, edge time≤10nS

Output level compatible with TTL

Output Impedance 50Ω nominal

Modulation and Trigger Input

Modulation Input voltage ±2.5Vpp full scale

Trigger Input level TTL

Input impedance 10kΩ nominal

Counter

Frequency Measurement 0.1Hz ~ 350MHz Resolution: 7 digits/s

Period, Pulse Width Measurement 100ns ~ 20s

Duty Cycle Measurement 0.1% ~ 99.6%

General Characteristics

Power AC 100 ~ 240V, 45 ~ 65Hz, ＜30VA

Dimension & Weight 367×256×106 mm, 3.7 kg
