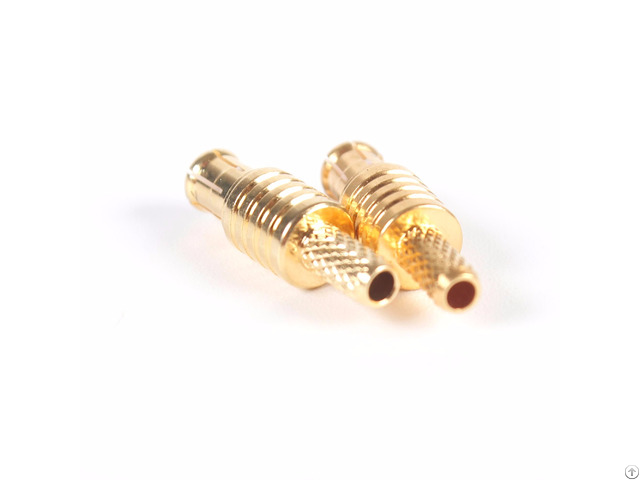

Mcx Connector - China

Model： FT-Connector-049 Major Technical Characteristics Type： MCX-C-JY1.5-049 Impedance ： 50Ω Frequency Range ： DC~6GHz Center conductor retention force： ≥0.28N Insertion Loss： 0.18dB(1GHz) Voltage Standing Wave Ratio： Straight ≤1.20/1GHz Right angle ≤1.45/1GHz Durability(mating): ≥500(cycles) Cable: RG174, RG316 Material & Plating Body: Brass Gold plated Pin contact： Tin bronze Gold plated Resilient contact： Beryllium-copper Gold plated Socket contact： Beryllium or tin bronze Gold plated Insulator： PTFE Crimp ferrule： Copper alloy Nickel or gold plated O-ring sealing： 6146 silicone rubber

Company Contact:

• Posted By: FUTAI HK Co.,Ltd

• Phone: 86-18474430030

• Address: NO.3,Xingye 3rd Road,Southwest Industrial Park,Sanshui Area, Foshan , Guangdong , China

• Email:

• Website: http://www.futai8.com

• Business Description: Futai Hongkong Co.,Ltd is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.

  Our subsidiary –Jinrei Communication co., ltd is located in are three catagories: , RF Connector , Cable Assembly and Antenna.

  Connectors are including RF Connectors (with SMA,MMCX, MCX, TNC, F, BNC ,N, and so on).

  Cable assemblies are includGaoqiao, Danyang City ,Jiangsu.

  Our major products ing interface cables (with U.

  FL, H.

  FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).

  Antenna are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.

  The corporation has passsed ISO9001-2000 certification and ISO14001 in 2004 - All of our products and raw materials are in line with the EU ROHS certification.

  Our Professional R&D staff develop and research latest designs to meet global market.

  Company purpose: Technological Innovation, Pragmatism, Customer Satisfaction.

  Quality principal: Continuous Improvement, Become the Best.

  We are looking forward to establishing business relations with clients from all over the world.
