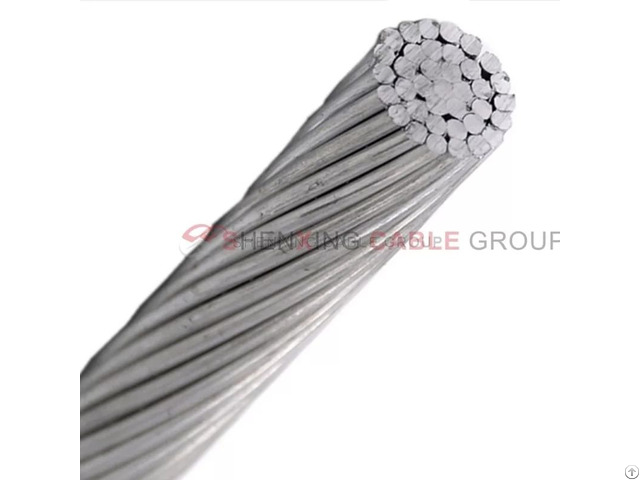

All Aluminum Conductor Overhead Cable Aac - China

AAC (All Aluminum Conductor) cables are made of high purity hard aluminum (1350-H19) round wires concentrically stranded, with an aluminum purity of not less than 99.7%.

The conductor can consist of 7, 19, 37, 61 or more conductors arranged in 1, 2, 3, 4 or more layers around a central conductor.

Each successive layer should have 6 more conductors than the layer immediately below.

For a given cross-sectional area, the greater the number of conductors (and the corresponding reduction in the size of each conductor), the more flexible the conductor.

This design makes AAC cables excellent in short span, high conductivity overhead transmission lines, particularly suitable for urban distribution networks and coastal areas.

Core application scenarios Due to its lightweight construction and excellent corrosion resistance, AAC conductors are ideal for use in coastal areas, urban grids, and areas with challenging environmental factors.

This makes it a highly durable and efficient choice for power distribution.

Urban grids: Suitable for low, medium, and high voltage overhead distribution lines in urban areas, especially when short spans are required but high conductivity is required.

Coastal areas: Due to the excellent corrosion resistance of aluminum, AAC cables perform well in coastal and other highly corrosive environments.

Advantages: High conductivity: High-purity aluminum ensures excellent conductivity and reduces line loss.

Lightweight structure: The low density of aluminum makes AAC cables light and easy to install and transport.

Strong corrosion resistance: The natural corrosion resistance of aluminum allows AAC cables to maintain stable performance in harsh environments.

Economical: Compared with other conductor materials, AAC cables are lower in cost and more cost-effective.

Customized according to project requirements: Available in a variety of sizes and international standards (ASTM, IEC, DIN, BS, AS, CSA, NFC, Ss), and can be customized according to specific project requirements to ensure versatility in different applications.

Features Structural diversity: According to the needs, the conductor can be made of 7, 19, 37, 61 or more aluminum wires, which increases the application range and flexibility of the product.

Good flexibility: By increasing the number of stranded wires, the flexibility of the conductor can be improved, which is convenient for construction operations.

Wide applicability: It can be used for overhead lines of various voltage levels to meet the needs of different scenarios.
