China Led Driver For Sale - China

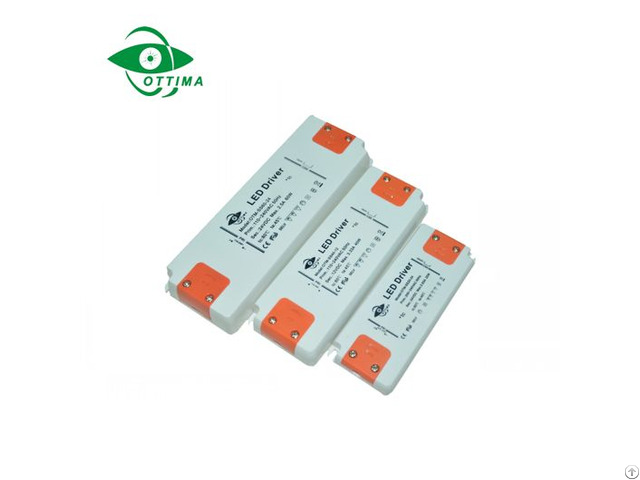

24v 30W ultra thin flat led driver constant voltage custom LED driver China china LED driver for sale 24v 30w constant voltage ultra thin LED driver plastic enclosure TUV approved 3 years warranty Ultra thin led driver Specifications

Product No.

OTMSS30-24

Output DC voltage 24V Rated Current 1.25A Current Range 0-1.25A Rated Power 30W Ripple and Noise(Max)Note.

2 1000mVp-p Voltage adjustment 11.6-12.4v Voltage Accuracy Note3 ±3% Linear Adjustment Note4 ±0.5% Load Adjustment Note5 ±2% Start and rise time 1000ms, 30ms/230VAC 1000ms, 30ms/110V Hold time(Typ) 50ms/230VAC 10ms/115AC

Input Voltage range 90-264VAC, 120-370VAC Frequency range 47-63HZ Efficiency(Typ) 85% AC current (Typ) 0.37A/90V, 0.26A/220V Surge current (Typ) Cold Start：65A/230VAC Current leak <2mA/240VAC

Environment Working temp.

-20～+60℃(Refer to the tenuation curve) Working humidity 20～90% RH, without condense Storage temp & hmdty -40～+80℃ Temp.

coefficient ±0.03%/℃ (0～50℃) Vibration proof 10～500HZ, 5G 10min / cycle, X, Y, Z axes 60 min each

Others Size 159*59*18mm(L*W*H) Packing 75PCS/CTN Feature of OTTIMA ultra thin LED driver

1 - 12vdc, 24vdc available

2 - Power 0-150w IP20 available

3 - Real CE Rohs approved

4 - PF>0.95

5 - Non flickering CV led driver

6 - LED driver height less than 16.5mm, 22mm

7 - 3 years warranty

8 - Professional datasheet and drawing available.

9 - Laser print customer's logo free on the led driver

10 - Ultra thin led driver free sample can be support

At present, our 60W can be with height 16.5mm.

Few other supplier in this line can do it FAQ about OTTIMA tech company

1 - Are you factory or trade company?

We are factory.

Our factory is in Shenzhen, China.

We also have another assembly factory in Meizhou, Guangdong province.

2 - Can we visit your factory?

Yes, sure, welcome to visit us any time.

After you fill the meeting form, then we will arrange the time to meet.

3 - How many years of your company established?

Our company is established in 2006

4 - How many workers of our company

We have about 150 workers.

5 - How many engineer of your company?

We have 6 engineers.

6 - How many square meters of your factory?

Our factory covers 4, 300 square meters

7 - Where is your main market?

Our led driver sales around more than 150 countries.

Our main market is United states, Canada, Australia, Thailand, United kingdom, Italy, Poland.

8 - What machine you have in your factory?

We have Wave soldering machine, Automatic aging test machine, Laser print machine, SMT machine, EMC test machine, etc.

As a professional ultra thin, constant current, dimmable LED driver manufacturer and supplier, We can guarantee product quality and delivery time.

Company Contact:

• Posted By: Ottima Technology Co.,ltd

• Phone: 86 371 68905280

• Address: Floor 4th,Building 1, Puhua Science & Technology Park, Industrial Park Road,Dalang Street,Longhu, Shenzhen , Guangdong , China

• Email:

• Business Description: OTTIMA TECHNOLOGY CO., LTD (refer to “OTTIMA” as following) is a worldwide supplier of LED Driver established in 2006 - OTTIMA is a high-tech enterprise specializing in the R&D, manufacture and export of LED Driver/LED power supply.

  Our factory covers 4,300 square meters and with 150 workers utilizing 6 production lines.

  We have 6 R&D staffs with 5-8 years experience in LED Driver.

  Our products are CE（TUV）,RoHs, SAA, C-tick,RCM, FCC and ETL approved.

  In addition, our quality can guarantee 3-5 years warranty and repair&maintenance rate below 0.3% .

  Our LED Drivers include constant current LED Driver, constant voltage LED Driver, waterproof LED Driver, triac dimmable LED Driver, ultra-thin LED Driver ,0-10V/1-10V/PWM dimmable LED Driver, DALI LED Driver, etc.

  Our company has advanced production equipment and testing equipment, such as wave soldering, ageing test equipment and SMD machine.

  We strictly carry out ISO9001 quality management system standard to ensure product quality.

  Since 2006, by virtue of strong development capability and excellent product quality, we have achieved a high reputation both at home and abroad market.

  We will continue to produce more competitive, environmentally friendly and energy saving products to meet customers' needs and create win-win business with you!
