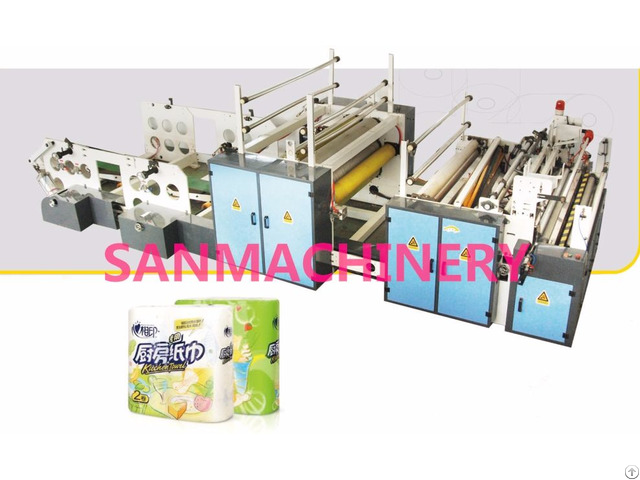

Kitchen Towel Paper Rewinding Machine - China

SAN adopts newly designed gluing lamination system, the advanced PLC programmable technology, frequency control, electronic braking and touch type multi-screen HMI.

An independently developed long-distance communication service system is equipped to monitor the running of the machine, greatly enhancing the efficiency.

Main features:

1 - Automatic core loading and replacing.

The logs are automatically pushed out and new logs will be winded right afterwards.

The cores can be changed to any sizes within one minute.

2 - Automatic unloading system with mechanical arms pushing the products out.

The minimum diameter of the product is 60mm.

3 - Automatic trimming, gluing and sealing at one time.

The machine adopts international popular trimming and sealing technology which leaves 10-18mm tails of the roll, reducing waste and cutting down the costs.

4 - Advanced PLC programmable control technology is used to produce winding rolls which are tight at the beginning and getting loose along the way to avoid the problem that the cores are loose from the rolls after long time storage.

5 - Automatic detection of paper break and wrap up.

The machine is monitored under high speed operation to guarantee the normal running.

6 - High-precision screwy perforation knife of four blades is equipped to make clear perforating, lower noises and wider range of the gear box.

7 - Three-layers unwinding unit with pneumatic paper roll loading and wide belt paper transmission is set with individual tension control unit for each jumbo roll.

8 - The gluing lamination system glues the embossed side and bonds the two layers together to raise absorbing.

9 - Frontal and back inching switch is set to drive the paper to make easier and safer operation.

Machine Model 1575 1880 2400 2600 3150 3500

Raw Material Width(mm) 1800 2100 2400 2500 3000 3500

Finished roll diameter 60-150mm

Finished roll core diameter 20-50mm

Raw material diameter 1100mm

Perforation pitch 4 perforating blades 90-160 mm ;

2 perforating knives 180-320mm

Speed 180-200 m/min

Pneumatic System 3 HP air compressor

Power 11-24KW

Dimension 8200*3200*2100-8200*4500* 2100mm

Bottom embossing roller Felt roller, wool roller, rubber roller

Edge embossing unit Steel to steel

Printing Unit Single/dual color printing unit

Driving system Independent servo driving
