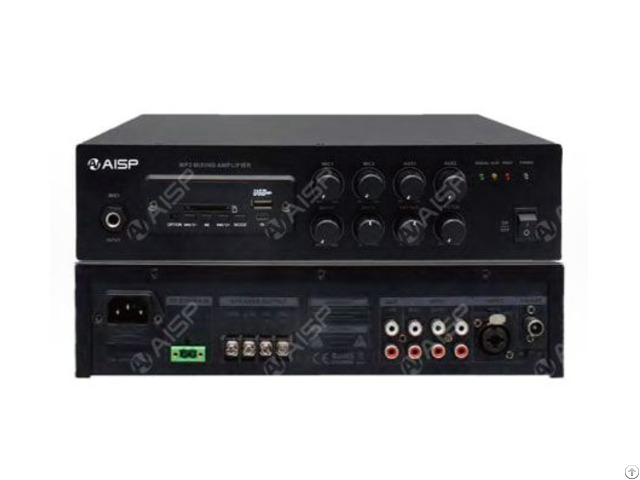

Ma 60 60w 120w Digital Amplifer With Bt Usb Fm - China

Suitable for small and medium-sized indoor venues such as small and medium supermarkets, shopping malls, casual cafes and other small and medium-sized indoor venues for background music playback and small and medium-sized background music playback.

Class-D amplifier circuitry.

BASS and TREBLE tone controllers.

Powersupply AC100-240V and DC24V.

EMCinput has priority over the other inputs.

70/100-volt and 4~16 ohms(Ω) output loads.

SMT circuit boards with highly stable performance.

Built-in USB player, FM tuner and Bluetooth receiver.

High-definition display for the working status of playing programme.

Individual volume controller for inputs, and master volume controller for all.

Two microphone (MlC1& MIC2) jacks, MlC2 supports 48V Phantom Power with switch ON/OFF.

Protection provided for output short circuit, overload, high temperature, peakcurrent limiters Product Model MA-60 MA-120

Rated Power 60W 120W

Output Mode Lowimpedance: 4/8 ohms(0), Woltage line: 70V& 100V

Compatible Media UsB, SD, Bluetooth, FM, Aux In

Playable Formats MP3 - WMA, WAVFLAC.

APE

Bluetooth Name BGM SYSTEM

Bluetooth Frequency 2402-2480 MHz

Bluetooth E.

1 - R.

P 2 dBm

FM Tuner Frequency 87.50~ 107.50 MHZ Frequency Response 60 Hz~ 15k Hz (± 3 dB)

THD <1% at 1kHz, 1/3 rated power

S/N ≥75dB

Tone Control BASS: 100 Hz (+ 10 dB), TREBLE: 10k Hz (± 10 dB)

Protection Short circuit, overload, high temperature

AC Power Supply AC230V/50Hz.

0.33A

AC Fuse T3.15A T3.15A

DC Power Supply DC24V, 3.13A

Power Cord (3× 0.75mm2)× 1.5M

Power Consumption 84W 168W

Dimensions 71(H)× 300(W)× 191(D) mm

Packing Size 120(H)× 350(W)× 255(D)mm

N.

W 4.8kg 5.2kg

G.

W 5.5kg 5.9kg Our Zones Amplifier is engineered to meet the demanding needs of commercial audio environments, offering precise zone management and consistent sound performance.

Designed for professional integrators, distributors, and system installers, this amplifier is ideal for large-scale installations such as hospitality venues, corporate offices, educational institutions, and retail spaces.

Key Features and Advantages of Zones Amplifier

·Multi-Zone Audio Distribution: Supports up to 4, 6, or 8 individual audio zones, each with independent volume and source control.

Enables efficient sound management across different functional areas, enhancing user experience and operational flexibility.

·High-Efficiency Amplification: Utilizing Class-D amplification technology, the system delivers powerful, energy-efficient output with reduced heat generation—ensuring stability and long-term durability even in continuous-use environments.

·Versatile Input Compatibility: The amplifier supports a wide range of input sources including balanced/unbalanced lines, microphone inputs, AUX, Bluetooth, and digital formats.

This ensures seamless integration with existing public address systems, mixers, and control hardware.

·Rack-Mount Design for Professional Installations: Built with a compact, rack-mountable chassis (19” standard), this model is easy to install in audio equipment racks, server rooms, or AV cabinets.

It’s designed to meet space efficiency without compromising performance.

·Advanced Protection Circuitry: Includes comprehensive protection features such as short-circuit, overload, and over-temperature safeguards—ensuring reliable performance and minimizing system downtime in commercial settings.

Zones Amplifier Application:

·Hospitality Sector – Distribute ambient audio across lobbies, conference areas, and guest zones with distinct control.

·Educational Institutions – Broadcast announcements, alarms, or educational media across classrooms and halls.

·Corporate Facilities – Manage background music and paging systems efficiently across office floors or departments.

·Retail and Shopping Centers – Provide area-specific music or marketing messages tailored to shopper behavior.

Why choose AISP as your supplier?

·OEM / ODM customization support: can be customized according to customer's needs in terms of brand, shell, function, etc.

·Wholesale Price Advantage: Suitable for engineering projects, distribution channels and brand partners to purchase in large quantities.

·Global Logistics Delivery: Export support, efficient and reliable delivery.

·Technical and after-sales support: engineering and sales team to provide professional advice and technical docking
