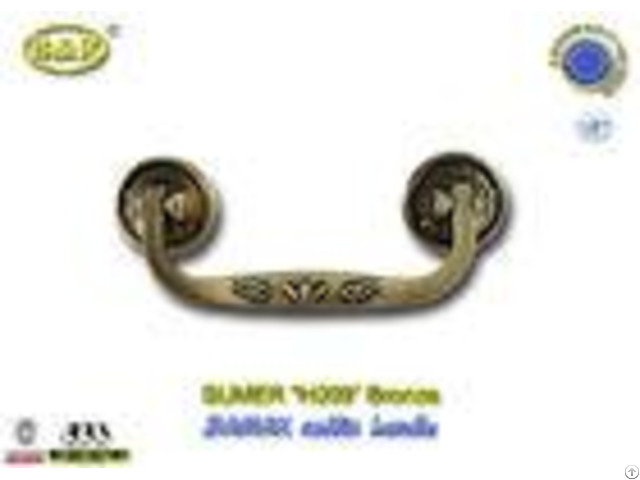

High Performance Zamak Metal Coffin Handles Size 19 7cm Rod H009 Antique Bronze Color - China

Main information: Product name: ZAMAK COFFIN HANDLE Model: H009 Brand: B&R Application: European style coffin Origin: China Manufacturer: Sumer International (Beijing) Trading Co., Ltd Product detail: Size: 19*7 cm Material: Zamak (Zinc alloy) Color: Gold, Silver or Bronze (Optional) Attached on coffin by bolt MOQ: 1000 pcs Main feature: Professionally engaged in funeral field over 10 years; Customized products acceptable; Good quality and competitive price; More Information: Major Alloy Characteristics ZAMAK 2: This is the strongest and hardest ZAMAK alloy.

Generally die cast, it is occasionally employed for gravity casting.

ZAMAK 2 is not the widely used.

ZAMAK 3: This is the most used general purpose zinc die casting alloy, providing an excellent combination of strength, ductility and impact strength.

It also provides excellent plating and finishing characteristics.

This alloy is the designer's first choice for die casting applications.

ZAMAK 5: ZAMAK 5 should be considered when moderately greater hardness, strength and creep resistance over ZAMAK 3 is required.

ZAMAK 7: this is a high purity for of ZAMAK 3 with similar mechanical properties.

However, ZAMAK 7 has higher ductility (for forming bending operations) and the highest casting fluidity of the ZAMAK family.

ZA-8: This should be the first choice when considering die casting the ZA family, due to its cost effective hot chamber castability.

ZA-8 provides improved performance characteristics over the ZAMAK alloys.

Plating and finishing characteristics are similar.

ZA-8 can also be sand or permanent mold cast.

ZA-12: This is the preferred alloy for permanent mold applications, although it can also be cal-chamber die cast with excellent results.

It combines low temperature melting efficiency and thin wall capabilities with premium mechanical properties.

ZA-12 should be used when switching from cast iron or permanent molded aluminum.

ZA-21 can usually be poured directly into molds designed for aluminum and brass.

ZA-27: Components requiring optimum strength, hardness and light weight should be specified using ZA-27 - With over double the yield strength of die cast A380 aluminum and 25% lighter than ZAMAK 3, this is definitely the high performance member of the group.

ZA-27 also offers excellent bearing properties, comparable to those of aluminum-bronze.

EZAC: Eastern Alloy's newest commercially available alloy.

EZAC is the strongest, hardest and most creep resistant die casting alloy available, and can be cast in the "hot-chamber" die casting process.

amak 3 Zamak 3 is the de facto standard for the zamak series of zinc alloys; all other zinc alloys are compared to this.

Zamak 3 has the base composition for the zamak alloys (96% zinc, 4% aluminium).

It has excellent castability and long term dimensional stability.

More than 70% of all North American zinc die castings are made from zamak 3 - Zamak 3 composition per standard - - - - | Alloying elements | Impurities | Standard | Limit | Al | Cu | Mg | Pb | Cd | Sn | Fe | Ni | Si | In | Tl | ASTM B240 (Ingot) | min | 3.9 | - | 0.025 | - | - | - | - | - | - | - | - | max | 4.3 | 0.1 | 0.05 | 0.004 | 0.003 | 0.002 | 0.075 | - | - | - | - | ASTM B86 (Cast) | min | 3.5 | - | 0.025 | - | - | - | - | - | - | - | - | max | 4.3 | 0.25 | 0.05 | 0.005 | 0.004 | 0.003 | 0.1 | - | - | - | - | EN1774 (Ingot) | min | 3.8 | - | 0.035 | - | - | - | - | - | - | - | - | max | 4.2 | 0.03 | 0.06 | 0.003 | 0.003 | 0.001 | 0.02 | 0.001 | 0.02 | - | - | EN12844 (Cast) | min | 3.7 | - | 0.025 | - | - | - | - | - | - | - | - | max | 4.3 | 0.1 | 0.06 | 0.005 | 0.005 | 0.002 | 0.05 | 0.02 | 0.03 | - | - | JIS H2201 (Ingot) | min | 3.9 | - | 0.03 | - | - | - | - | - | - | - | - | max | 4.3 | 0.03 | 0.06 | 0.003 | 0.002 | 0.001 | 0.075 | - | - | - | - | JIS H5301 (Cast) | min | 3.5 | - | 0.02 | - | - | - | - | - | - | - | - | max | 4.3 | 0.25 | 0.06 | 0.005 | 0.004 | 0.003 | 0.01 | - | - | - | - | AS1881 | min | 3.9 | - | 0.04 | - | - | - | - | - | - | - | - | max | 4.3 | 0.03 | 0.06 | 0.003 | 0.003 | 0.001 | 0.05 | - | 0.001 | 0.0005 | 0.001 | GB8738-88 | min | 3.9 | - | 0.03 | - | - | - | - | - | - | - | - | max | 4.3 | 0.1 | 0.06 | 0.004 | 0.003 | 0.0015 | 0.035 | - | - | - | - | Impurity | - - - - More Picture: H009 bronze color H009 back
