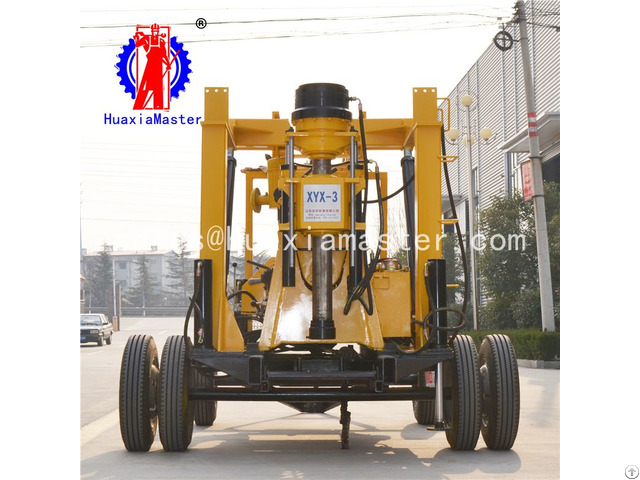

Xyx 3 Water Well Drilling Rig Price - China

1 - The features of XYX-3 water well drilling machine

The rig is equipped with wheeled walking mechanism and hydraulic cylinder support, which is convenient for the whole machine to be relocated and easy to adjust the level of the drilling rig.

Using the ball card holding mechanism to replace chuck, can implement non-stop down rod, convenient operation, safe and reliable.

The lifting and falling tower is hydraulic operation, which is convenient and reliable.

The diesel engine uses electric start to reduce the labor intensity of the workers

With oil pressure feeding mechanism to improve drilling efficiency.

The pressure gauge is provided with the pressure gauge of the bottom of the hole, easy to grasp the situation in the hole.

2 - The specifications of XYX-3 water well drilling machine

Drilling hole depth 100/250/300/600 m

Opening hole diameter 300/200/150/75mm

Maximum opening hole diameter 300mm

End hole diameter 75mm

Drilling pipe 60mm

Drilling angel 90°-65°

Vertical shaft

Shaft Forward speed 30-1050r/min

Reverse speed 29-137r/min

Stroke 560mm

Inner hole diameter 96mm

Lifting force 60kn

Winch

Lifting speed (single rope) 0-45m/min

Wire rope diameter 14mm

Roll capacity 30m

Lifting force (single force) 40kn

Mud pump

Mud pump BW-250 Horizontal three cylinder

Flow rate 250l/min

Working pressure 7mpa

Inlet hose diameter 75mm

Outlet hose diameter 50mm

Gear pump

Dual gear pump CBF-F63/25

Front flow pressure 63l/min 20Mpa

Back end flow pressure 25l/min 20Mpa

Rig power

Diesel engine FAW Xichai 4 cylinder

Electric motor Y180L-4 22KW

Wheeled chassis

Capacity 3.5T

Length 2.6m

Width 2m

Height 0.6m
